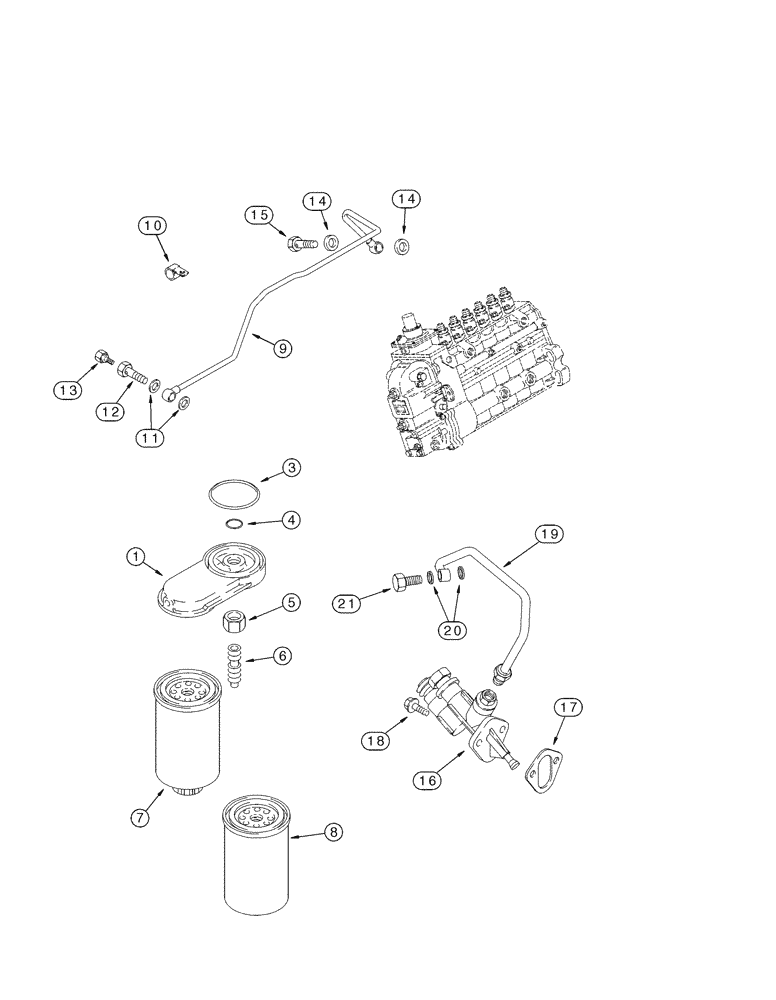

Запчасти Case IH MX180 (03-05) - FUEL FILTER PUMP, TRANSFER, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J897331

SUPPORT

Filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING 70 mm

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

6b

A77470

SEPARATOR

Not Illustrated, Consists of 7, 8

1шт.

7

J930942

SEPARATOR

1шт.

8

J931063

FUEL FILTER

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

1шт.

10

J914711

CLIP

1шт.

11

J935171

SEALING WASHER

12 x 19 x 1,5 mm

2шт.

J905860

BANJO BOLT

Consists Of 12, 13

1шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

NSS

NOT SOLD SEPARAT

Screw

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

16

J936316

FUEL PUMP

1шт.

17

J931059

GASKET

Replaces J931348

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

20

J935171

SEALING WASHER

12 x 19 x 1,5 mm

2шт.

21

J916361

BANJO BOLT

M12 x 24

1шт.
