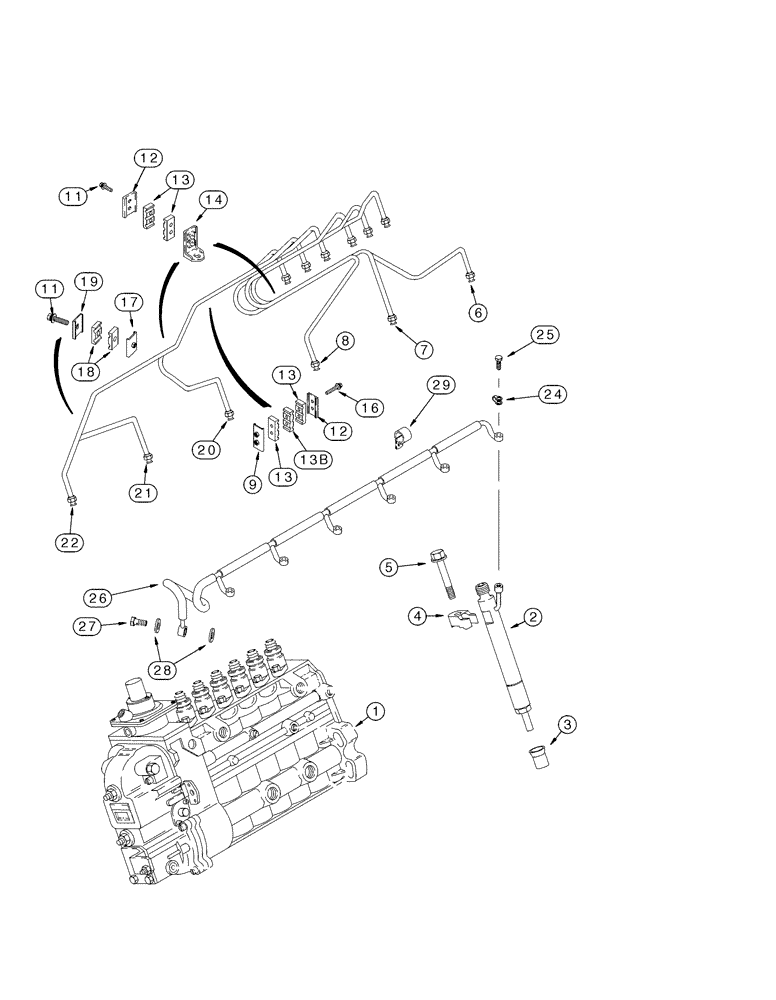

Запчасти Case IH MX180 (03-01) - FUEL INJECTION SYSTEM, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J930526

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 3-09

1шт.

2

J930525

INJECTOR ASSY.

See Figure 3-17

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J930442

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 1

1шт.

7

J930443

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 2

1шт.

8

J930444

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 3

1шт.

9

J917716

BRACE

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

5шт.

12

J904519

SUPPORT

3шт.

13

J917747

CLAMP

6шт.

13c

J917748

CLAMP

1шт.

14

J282942

BRACKET

2шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35

2шт.

17

J917717

BRACE

1шт.

18

J917746

CLAMP

2шт.

19

CURJ904711

CLAMP

1шт.

20

J931356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 4

1шт.

21

J930446

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 5

1шт.

22

J930447

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 6

1шт.

24

J903380

SEAL

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

26

J920595

TUBE ASSY.

1шт.

27

J924726

BANJO BOLT

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

29

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

1шт.
