Запчасти Case IH MX180 (02-31) - CYLINDER HEAD VALVE MECHANISM, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

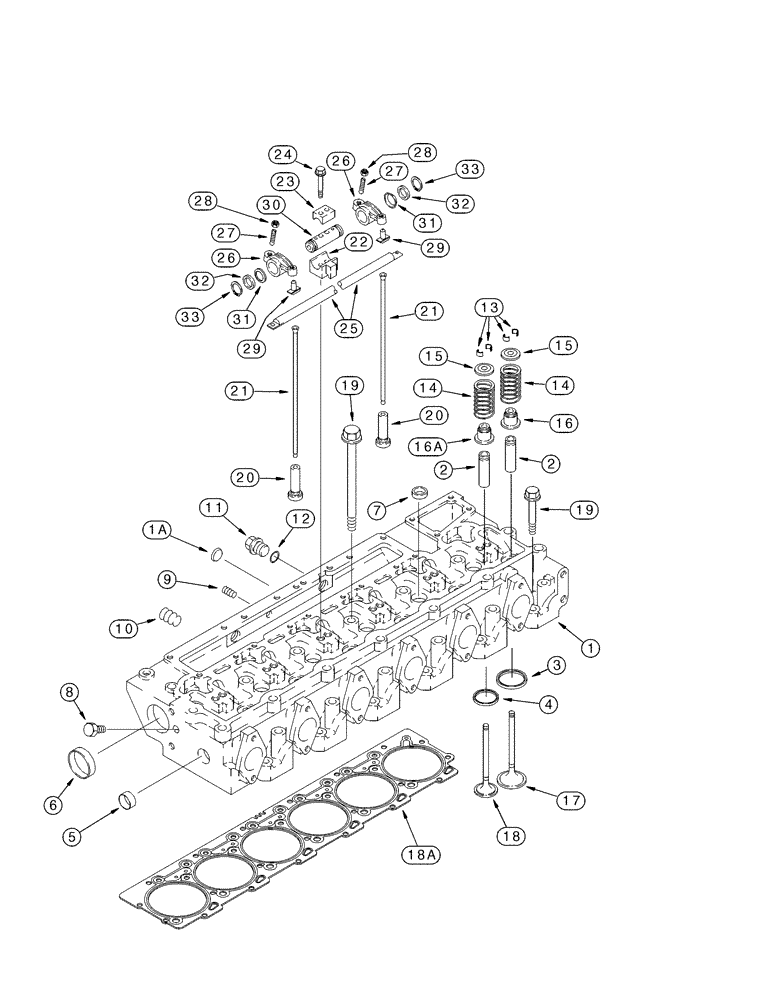

Схема запчастей Case IH MX180 - (02-31) - CYLINDER HEAD VALVE MECHANISM, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
29
8
33
2
12
3
28
15
25
20
21
33
18a
23
29
14
9
2
31
26
21
4
1a
16
32
26
5
14
27
30
22
17
15
24
10
31
11
27
32
28
19
13
16a
19
1
20
18
7
6

Артикул

Название

Примечание

Количество

J936280

HEAD

Cylinder, With Valves, Inc. 1 - 18

1шт.

JR936280

REMAN-CYLINDER HEAD

Cylinder, Remanufactured

1шт.

JC936280

REMAN-CYLINDER HEAD

Return Number

1шт.

84262945R

REMAN-CYLINDER HEAD

MX220, MX200,MX180 ALL P.I.N. JJA0105000 & After (1/99-), Reman For New P/N J936264

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J936264

HEAD

Cylinder, Without Valves, Includes 1A - 7

1шт.

1

84262945R

REMAN-CYLINDER HEAD

MX220, MX200,MX180 ALL P.I.N. JJA0105000 & After (1/99-), Reman For New P/N J936264

1шт.

1

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

86990827

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

86990828

CORE-CYLINDER HEAD

Return Number

1шт.

1b

J912900

PLUG

24 mm

1шт.

2

J923564

VALVE GUIDE

12шт.

3

J924582

INSERT

Intake

6шт.

3

J925468

SEAT, VALVE

0,25 mm, Intake, Oversize

6шт.

3

J925470

SEAT, VALVE

0,50 mm, Intake, Oversize

6шт.

4

J929005

INSERT

Exhaust

6шт.

4

J929006

INSERT

0,25 mm, Exhaust, Oversize

6шт.

4

J929007

INSERT

0,50 mm, Exhaust, Oversize

6шт.

5

J920443

PLUG

30 mm

1шт.

6

A77782

PLUG

58 mm

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

1/16 PT

1шт.

9

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

10

A77429

PLUG

1/2 PT

2шт.

11

J924148

PLUG,M22 x 1.5

M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

13

J901177

VALVE

24шт.

14

J906412

VALVE SPRING

12шт.

15

J912976

RETAINER

12шт.

16

J927642

SEAL

Intake, Valve

6шт.

16b

J927642

SEAL

Exhaust, Valve

6шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18b

J935585

GASKET

See Figure 2-29

1шт.

19

J917728

BOLT

160 mm

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

80 mm

12шт.

20

J931623

TAPPET

12шт.

21

J905194

PUSH ROD

12шт.

22

J905870

SUPPORT

6шт.

23

J901693

CLAMP

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Includes 27 - 29

12шт.

27

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

30

J919435

SHAFT

6шт.

31

J906100

SPRING CUP

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.

Выбрано товаров: 50
