Запчасти Case IH MX180 (02-22) - TURBOCHARGER ASSY, MX180, 6T-830 EMISSIONS CERTIFIED ENGINES (02) - ENGINE

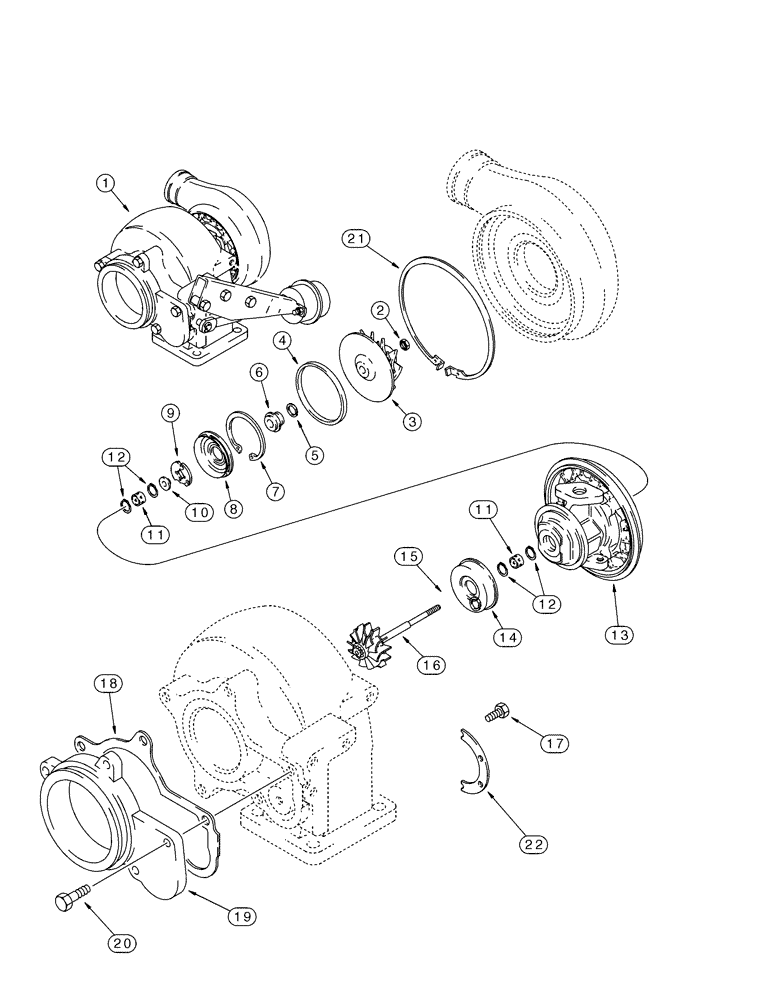

Схема запчастей Case IH MX180 - (02-22) - TURBOCHARGER ASSY, MX180, 6T-830 EMISSIONS CERTIFIED ENGINES (02) - ENGINE
12
11
3
1
14
13
11
2
10
15
21
18
7
16
12
5
6
17
19
9
22
20
8

Артикул

Название

Примечание

Количество

JR802896

REMAN-TURBOCHARGER

Turbocharger, Remanufactured, Includes JR538696, J519807, J911941, Not Illustrated

1шт.

JC538696

CORE-TURBOCHARGER

1шт.

J802896

TURBOCHARGER

Turbocharger, Includes J538696, J519807, J911941, Not Illustrated

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger, Consists Of 2 - 22, Also Includes 1 - 12, See Figure 2-24

1шт.

1

J535324

CARTRIDGE

Consists Of 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Consists Of 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.

Выбрано товаров: 27
