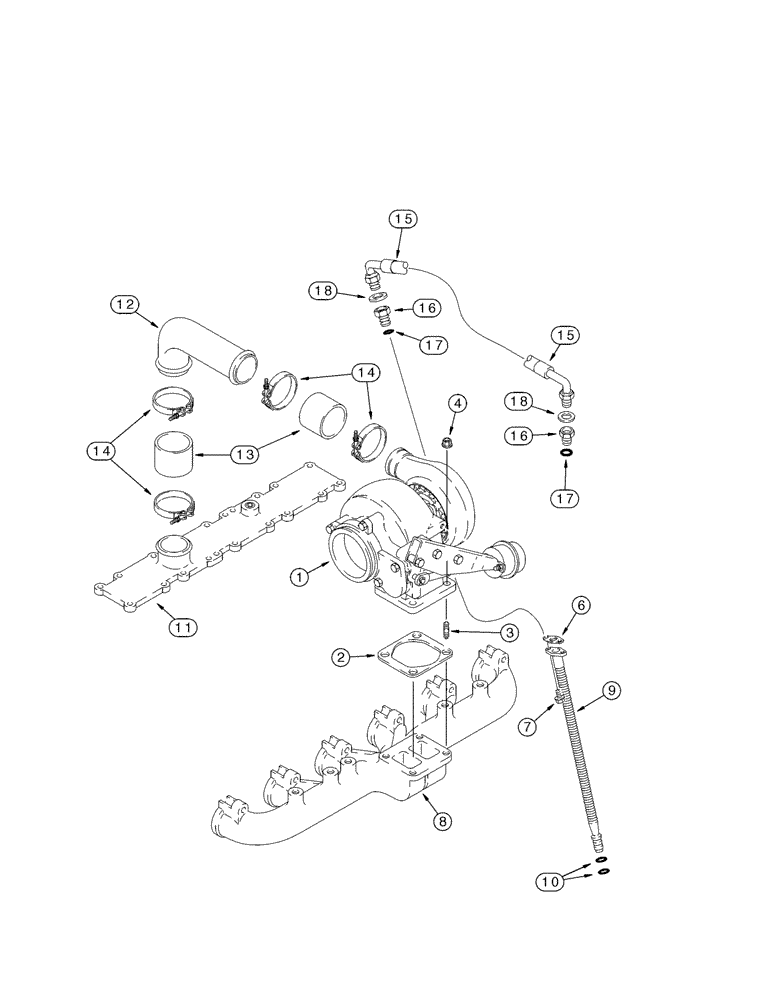

Запчасти Case IH MX180 (02-19) - TURBOCHARGER SYSTEM, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

Turbocharger Assy, See Figure 2-22

1шт.

2

J911941

GASKET

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J285747

GASKET

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J932183

EXHAUST MANIFOLD

See Figure 2-16

1шт.

9

J928629

TUBE

Includes 10

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

J922648

COVER ASSY

See Figure 2-16

1шт.

12

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

1шт.

13

J916437

HOSE

2шт.

14

J924386

COLLAR CLAMP

4шт.

15

J921530

HOSE,9.53mm ID x 385mm L

1шт.

16

J919687

HYD CONNECTOR

Includes 17

2шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
