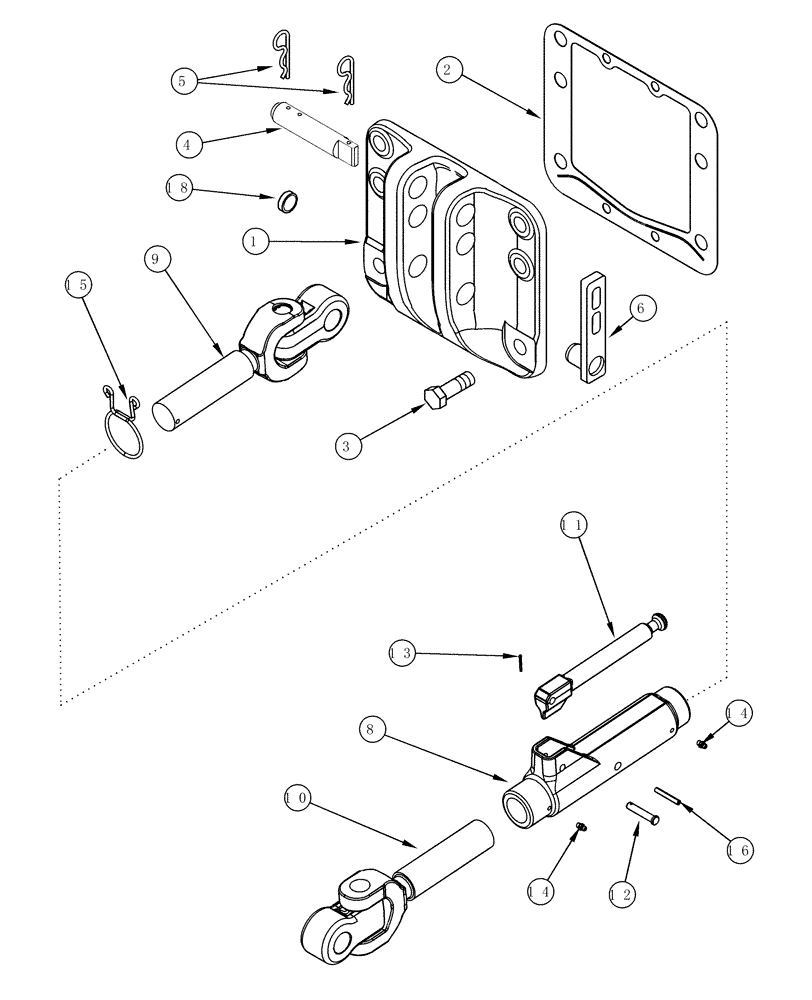

Запчасти Case IH MX180 (09-50) - TOP LINK HITCH, N.A. ONLY (09) - CHASSIS/ATTACHMENTS

1

377206A1

HITCH BRACKET

1шт.

2

379145A2

GASKET,0.79mm Thk

1шт.

3

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

4

378929A1

PIN,31.65mm OD x 180mm L

1шт.

5

486830R1

COTTER PIN

2шт.

6

378932A1

PIN,31.65mm OD x 46mm L

1шт.

8

310524A3

TURNBUCKLE

315 mm, 12.40 Inches Long

1шт.

9

319585A1

CLEVIS

Right Hand Threads

1шт.

10

319586A1

TRACK ROD END ASSY

Left Hand Threads

1шт.

11

310944A1

HANDLE

1шт.

12

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

15

315912A1

SPRING

1шт.

16

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

1шт.

18

641-3432

PLUG,M32, Conical

32 mm

3шт.
