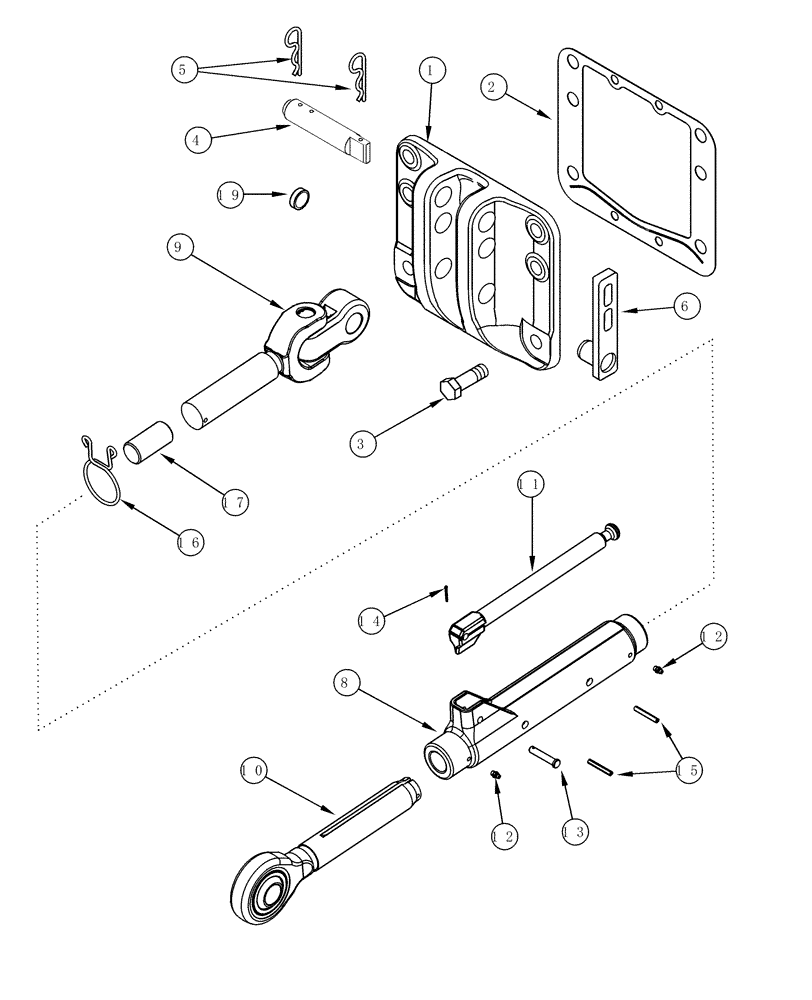

Запчасти Case IH MX180 (09-49) - TOP LINK HITCH, MX180, N.A. ONLY (09) - CHASSIS/ATTACHMENTS

1

377206A1

HITCH BRACKET

1шт.

2

379145A2

GASKET,0.79mm Thk

1шт.

3

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

4

378929A1

PIN,31.65mm OD x 180mm L

1шт.

5

486830R1

COTTER PIN

2шт.

6

378932A1

PIN,31.65mm OD x 46mm L

1шт.

284335A3

UPPER LINK

Consists Of 8 - 17

1шт.

8

1954223C4

ARM,1-3/4" - 5

406 mm, 16 Inchs

1шт.

9

319585A1

CLEVIS

Right Hand Threads

1шт.

10

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

Left Hand Threads

1шт.

11

1331863C2

HANDLE

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

13

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

14

432-610

COTTER PIN,3/32" x 5/8"

1шт.

15

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

2шт.

16

315912A1

SPRING

1шт.

17

315541A1

SPACER

1шт.

19

641-3432

PLUG,M32, Conical

32 mm

3шт.
