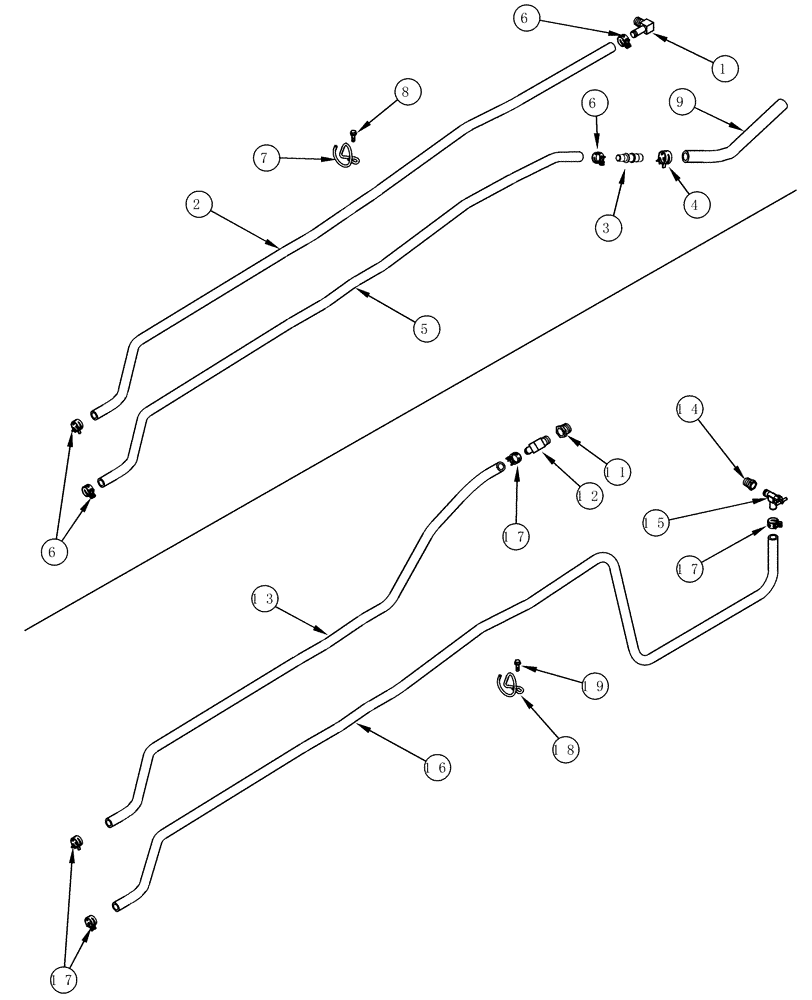

Запчасти Case IH MX180 (09-40) - HEATER SYSTEM, MX180, MX200, MX220 (09) - CHASSIS/ATTACHMENTS

1

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

5/8 stem x 1/2 PT

1шт.

2

1971261C2

HEATER HOSE,15.50 mm ID x 2050.00 mm

Cut From 97252CX

1шт.

3

388058A1

REDUCER FITTING

3/4 x 5/8

1шт.

4

389840A1

HOSE CLAMP

1шт.

5

1974657C1

HEATER HOSE,15.50 mm ID x 2057.00 mm

Cut From 97252CX

1шт.

6

1954736C1

HOSE CLAMP,#24

4шт.

7

330513A1

GUIDE

1шт.

8

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

9

388060A1

HEATER HOSE,19.10 mm ID x 450.00 mm

MX240, MX270

1шт.

11

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

12

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

5/8 stem x 1/2 PT

1шт.

13

1974656C1

HEATER HOSE,15.50 mm ID x 1956.00 mm

Cut From 97252CX

1шт.

14

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

1шт.

15

301803R1

SHUT-OFF VALVE

1шт.

16

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

Cut from 97252CX

1шт.

17

1954736C1

HOSE CLAMP,#24

4шт.

18

330513A1

GUIDE

1шт.

19

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.
