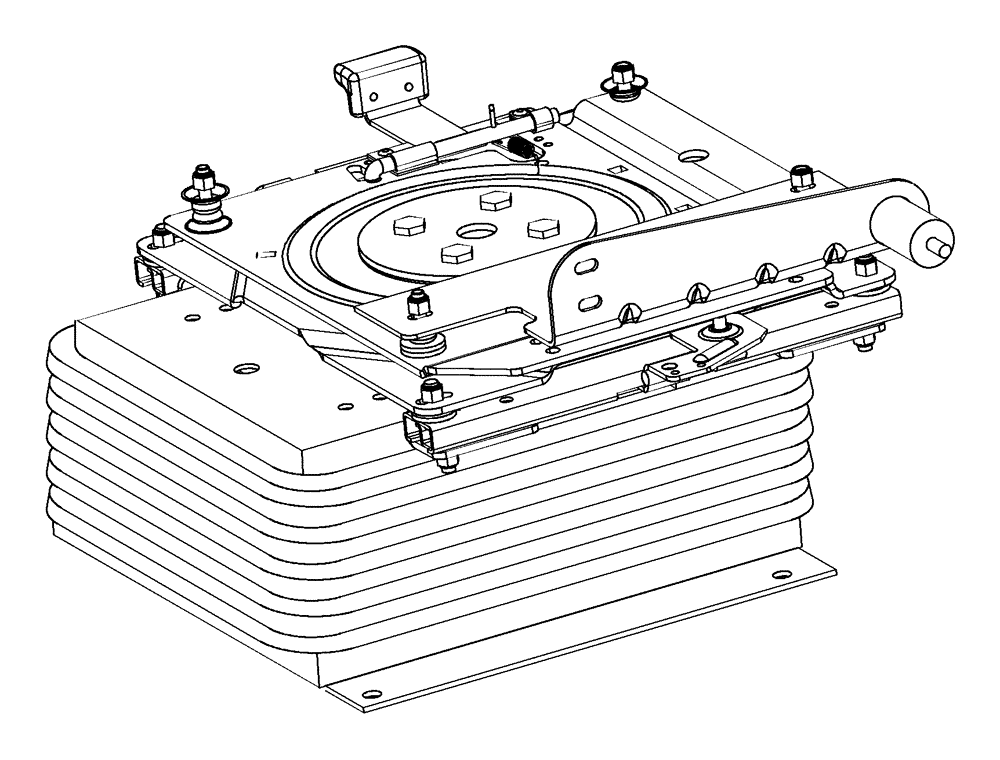

Запчасти Case IH MX180 (09-32) - SUSPENSION ASSEMBLY SEAT, -JJA0106541, EUROPE ONLY, STANDARD CAB (09) - CHASSIS/ATTACHMENTS

373488A1

KIT

Seat Suspension, Inc. 1 - 14

1шт.

1

373489A1

FIP KIT

Lower

1шт.

2

1343996C1

HOUSING

Upper

1шт.

3

373490A1

KIT

1шт.

4

143786A1

SHAFT,308.9mm L

2шт.

5

333279A1

PACKAGE,SERVICE

Air Spring

1шт.

6

1344250C2

KIT

Shock Absorber

1шт.

7

358903A1

COMPRESSOR

Air Compressor

1шт.

8

373491A1

KIT

1шт.

9

1981852C3

SWITCH

1шт.

10

1990548C4

KIT

Tube And Fitting

1шт.

11

1990647C2

KIT

Boot

1шт.

12

180593A1

KIT

Bumper

1шт.

13

291279A1

BUMPER

1шт.

14

124145A1

KIT

Suspension Bearing And Rollers

1шт.

15

132872A1

KIT

Boot Pin

1шт.

16

1987186C2

KNOB

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

18

231-1444

NUT,1/4"-20, GB

2шт.

19

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.
