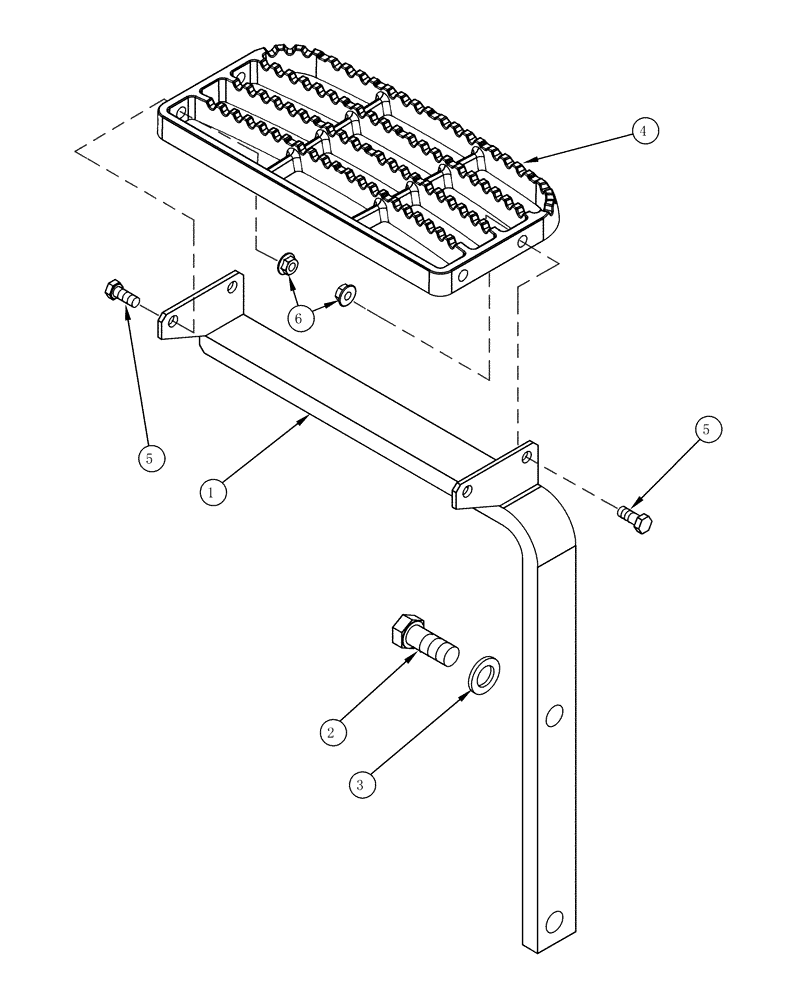

Запчасти Case IH MX180 (09-17) - CAB FRONT WINDOW STEP (09) - CHASSIS/ATTACHMENTS

308727A

KIT

Order From Machinery Price List, Inc. 1 - 6

1шт.

1

284654A1

SUPPORT

1шт.

2

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

4

257375A1

STEP

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.
