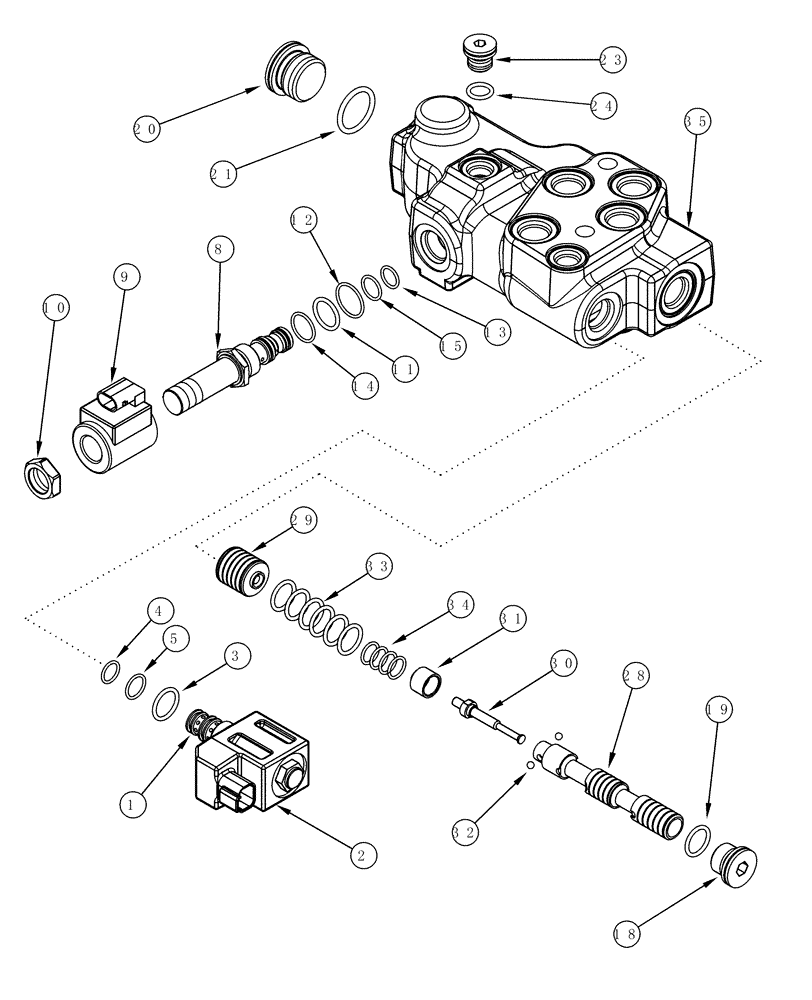

Запчасти Case IH MX180 (08-23) - P.T.O. CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

247627A4

VALVE

Consists Of 1 - 35

1шт.

349295A1

SOLENOID VALVE

Inc. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

2

NSS

NOT SOLD SEPARAT

Coil

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

239552A2

SOLENOID VALVE

Consists Of 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

9

NSS

NOT SOLD SEPARAT

Coil

1шт.

10

NSS

NOT SOLD SEPARAT

Nut

1шт.

308245A1

SEAL KIT

Inc. 11 - 15

1шт.

11

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

12

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

13

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

14

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

18

221578A1

PLUG,M18 x 1.5 ORB

Includes 19

1шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

221580A1

PLUG,M27 x 2 ORB

Includes 21

1шт.

21

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

23

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 24

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

283642A4

SPOOL

Consists Of 28 - 34

1шт.

28

NSS

NOT SOLD SEPARAT

Spool

1шт.

29

NSS

NOT SOLD SEPARAT

Piston

1шт.

30

NSS

NOT SOLD SEPARAT

Pin

1шт.

31

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

32

NSS

NOT SOLD SEPARAT

Ball

2шт.

33

NSS

NOT SOLD SEPARAT

Spring

1шт.

34

NSS

NOT SOLD SEPARAT

Spring

1шт.

35

NSS

NOT SOLD SEPARAT

Body

1шт.
