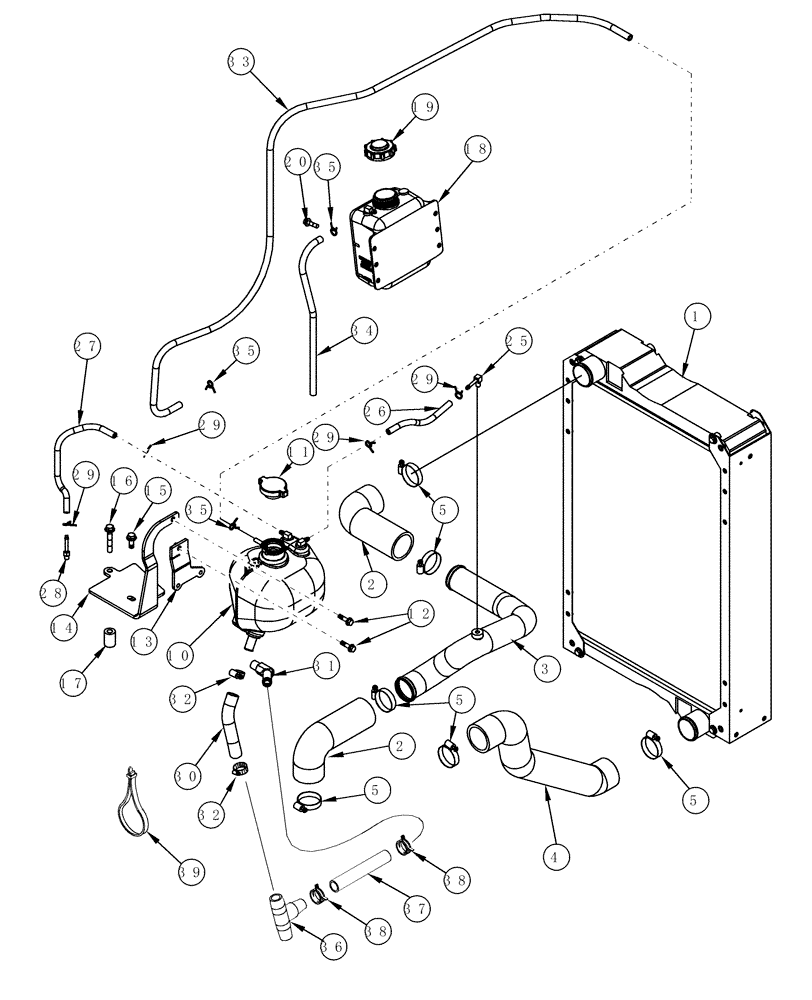

Запчасти Case IH MX180 (02-03) - DEAERATION SYSTEM, MX180, MX200, MX220 (02) - ENGINE

1

REF

INSTRUCTION

Radiator, See Figure 2-2

1шт.

2

257281A2

LARGE HOSE

HOSE,LARGE

2шт.

3

255185A1

TUBE,150, 134 mm Length

1шт.

4

226756A2

RADIATOR HOSE,56.40 mm ID x 474.00 mm, SAE J20, SAE 20R4 Class D1

1шт.

5

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

6шт.

10

294547A1

RESERVOIR

1шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

304540A1

SUPPORT

1шт.

14

302774A1

SUPPORT

1шт.

15

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

16

844-10060

BOLT,Hvy Hex, M10 x 60mm, Cl 8.8

M10 x 60; 10.9

1шт.

17

A176570

SPACER

SPACER

1шт.

18

L127093

RESERVOIR

1шт.

19

1547924C1

CAP

1шт.

20

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

25

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1/4 stem x 1/8 PT

1шт.

26

242066A1

HOSE,6.35mm ID x 225mm L, SAE 30R7

1шт.

27

242067A1

HOSE,6.35 mm ID x 360.00 mm, SAE 30R7

1шт.

28

217-140

ELBOW,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1/4 stem x 1/8 PT

1шт.

29

214-1307

HOSE CLAMP,#7, 7/16", Spring

4шт.

30

242068A1

HOSE,19.10 mm ID x 550.00 mm

1шт.

31

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

3/4 stem x 1/2 PT

1шт.

32

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

33

242069A1

HOSE,7.90 mm ID x 1800.00 mm, SAE 30R7

1шт.

34

242070A1

HOSE,7.9mm ID x 450mm L, SAE 30R7

1шт.

35

214-1309

HOSE CLAMP,#9, 9/16", Spring

9/16

3шт.

36

388057A1

FITTING

1шт.

37

388059A2

HEATER HOSE,19.10 mm ID x 100.00 mm

1шт.

38

389840A1

HOSE CLAMP

2шт.

39

A169433

CABLE TIE,304.8mm L

12 in

1шт.
