Запчасти Case IH MX180 (08-17) - HYDRAULIC PISTON PUMP ASSEMBLY, HIGH FLOW CAPACITY PUMP (08) - HYDRAULICS

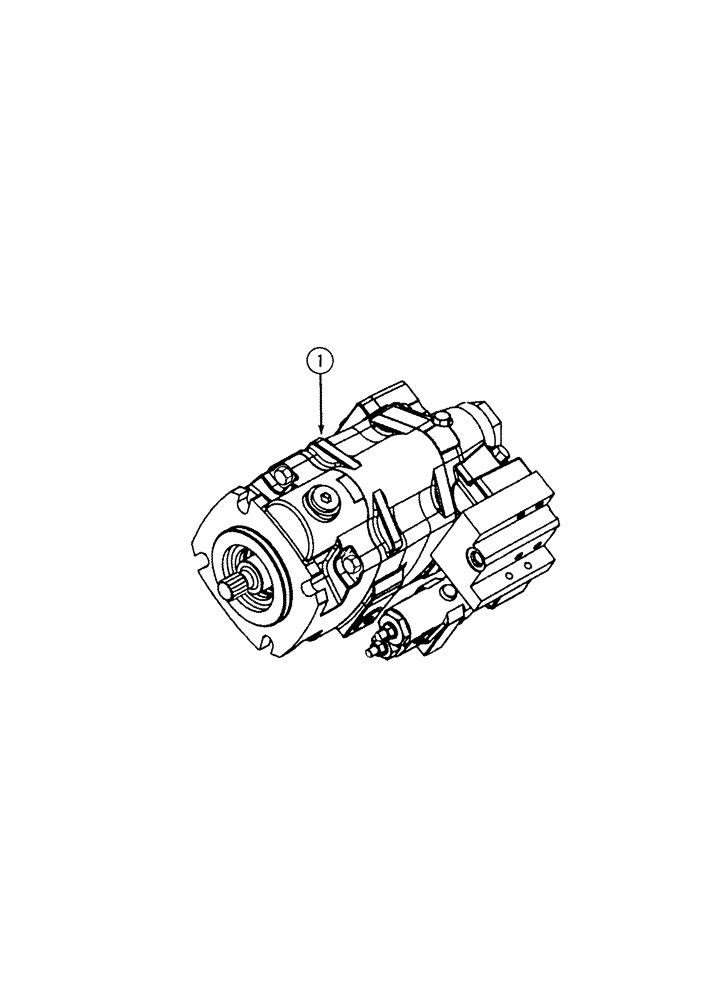

Схема запчастей Case IH MX180 - (08-17) - HYDRAULIC PISTON PUMP ASSEMBLY, HIGH FLOW CAPACITY PUMP (08) - HYDRAULICS
1

Артикул

Название

Примечание

Количество

1

233747A1

PUMP, HYDRAULIC

High Flow Capacity, 45 gpm

1шт.

233747A1R

REMAN-HYD PUMP

MX180, MX200, MX220, MX240, MX270, All P.I.N. JJA0105000 & Aft.

1шт.

233747A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

330515A1

PACKAGE, REPAIR

Inc. 3 - 8

1шт.

3

328222A1

PACKAGE

Rotating Group

1шт.

4

328223A1

SEAL KIT

Rotating Group

1шт.

5

328225A1

BEARING ASSY

Shaft, Bearing

1шт.

6

328607A1

PACKAGE,SERVICE

Yoke, Bearing

1шт.

7

328226A1

PACKAGE

Bearing, Spacer

1шт.

8

328799A1

EQUALIZER

Compensator

1шт.

Выбрано товаров: 10
