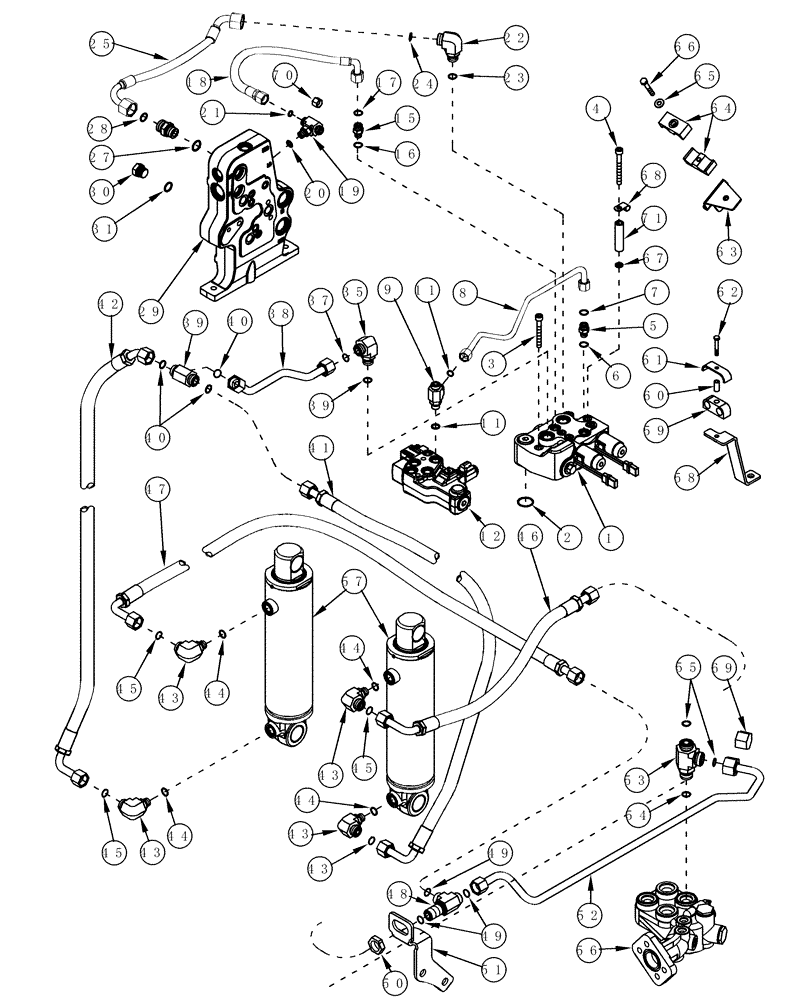

Запчасти Case IH MX180 (08-09) - HYDRAULIC SYSTEM HITCH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
251138A2
VALVE
See Figure 8-19
1шт.
2
238-5125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro
1-5/16 ID x 3/32
1шт.
3
864-10080
HEX SOC SCREW,M10 x 80mm, Cl 8.8
1шт.
4
864-10090
HEX SOC SCREW,M10 x 90mm, Cl 8.8
1шт.
5
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 6, 7
1шт.
6
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
8
372190A1
PIPE
1шт.
9
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Inc. 10, 11
1шт.
10
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
12
REF
INSTRUCTION
Valve Assy, Control, See Figure 8-23
1шт.
13
REF
INSTRUCTION
Valve Assy, Priority, See Figure 8-18
1шт.
15
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 16, 17
1шт.
16
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
17
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
18
396558A1
HOSE ASSY.,6.35mm ID x 700mm L
1шт.
19
700-401
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
11/16 fc sl x 14 Or, Inc. 20, 21
1шт.
20
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
21
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
22
700-306
ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl. 23, 24
1шт.
23
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
24
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
25
396557A1
HOSE ASSY.,15.88mm ID x 500mm L
1шт.
26
700-103
HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl. 27, 28
1шт.
27
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
28
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
29
REF
INSTRUCTION
Manifold, See Figure 8-24
1шт.
30
220067A1
PLUG,M22 x 1.5 ORB
22 Or, Without Hitch, Includes 31
1шт.
31
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
35
700-306
ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl. 36, 37
1шт.
36
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
37
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
38
307142A2
TUBE,0.625" OD, 288, 42 mm Length
1шт.
39
701-415
TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS
Inc. 40
1шт.
40
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
3шт.
41
365324A1
HOSE,12.7mm ID x 1390mm L
Raise, Right Hand
1шт.
42
365325A1
HOSE,12.7mm ID x 997mm L
Raise, Left Hand
1шт.
43
384560A1
FITTING
1 fc sl x 18 Or, Inc. 44, 45
4шт.
44
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
45
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
46
365326A1
HOSE
Lower, Right Hand
1шт.
47
365327A2
HOSE
Lower, Left Hand
1шт.
48
701-429
TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS
Inc. 49
1шт.
62
814-6040
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8
1шт.
49
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
3шт.
50
701-919
BHD LOCK NUT,1" - 14
1шт.
51
308510A1
SUPPORT
1шт.
52
308340A1
TUBE
1шт.
53
700-428
TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
1-3/16 fc sl x 27 Or, Inc. 54, 55
1шт.
54
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
55
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
56
REF
INSTRUCTION
Head, Filter, See Figures 8-03, 8-04
1шт.
57
REF
INSTRUCTION
Cylinder Assy, See Figures, Serial Range: 8-20-8-22
2шт.
58
308478A1
SUPPORT
1шт.
59
399112A1
FIXING BRACKET
1шт.
60
303793A1
SLEEVE
1шт.
61
301688A1
ANCHOR
1шт.
63
349233A1
BRACKET
2шт.
64
329804A1
CLAMP,22mm ID
2шт.
66
814-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
2шт.
67
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
1шт.
68
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
1шт.
69
701-907
CAP,1-3/16" - 12
1-3/16 in, Without Hitch
1шт.
70
701-900
CAP,11/16" - 16
11/16 in, Without Hitch
1шт.
71
357547A1
SPACER
Without Hitch
1шт.
65
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
2шт.
