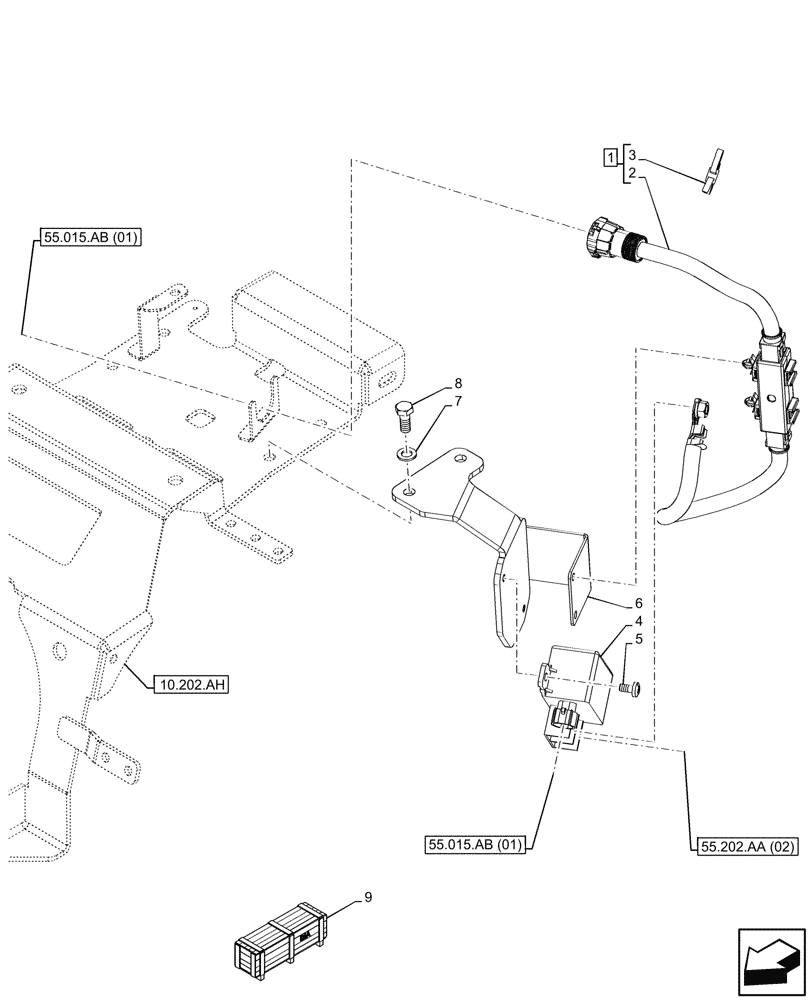

Запчасти Case IH MAXXUM 150 (55.202.AC[02]) - VAR - 758401, 758402, 758403 - COLD START SYSTEM, GRID HEATER (55) - ELECTRICAL SYSTEMS

1

47783139

WIRE HARNESS

Grid Heater, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Wire Harness, Incl in 1

1шт.

3

82013031

CABLE TIE,193mm L

1шт.

4

82022813

RELAY,12V, High Current

12V

1шт.

5

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

6

47793332

BRACKET

CNH Black

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

718203104

DIA KIT, TRACTOR

Grid Heater, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
