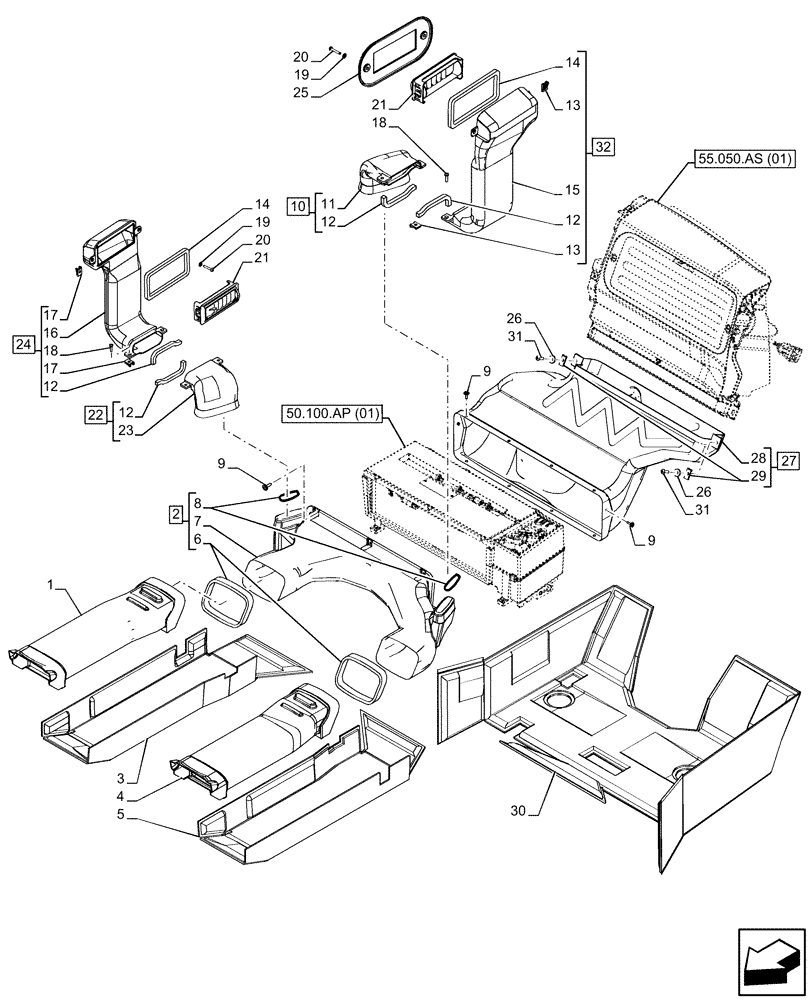

Запчасти Case IH MAXXUM 150 (50.104.AO[01]) - VAR - 392195, 743764, 743766, 758413, 758414, 758415, 758416, 758581 - CAB, AIR DUCT (50) - CAB CLIMATE CONTROL

1

87301551

DUCT

Front RH

1шт.

2

82034311

AIR DUCT

ASSY, Incl 6 - 8

1шт.

3

87661587

INSULATOR

Front Floor, RH

1шт.

4

87301550

DUCT

Front LH

1шт.

5

87661589

INSULATOR

Front Floor, LH

1шт.

6

82034490

SEAL

2шт.

7

NSS

NOT SOLD SEPARAT

Duct, Incl in 2

1шт.

8

82033452

SEAL

2шт.

9

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

13шт.

10

82034323

AIR DUCT

Lower, LH, ASSY, Incl 11, 12 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Duct, Incl in 10

1шт.

12

82024756

SEAL,8mm Thk

4шт.

13

83907330

SPRING NUT

4шт.

14

82022367

SEAL

1шт.

15

NSS

NOT SOLD SEPARAT

Duct, Incl in 32

1шт.

16

NSS

NOT SOLD SEPARAT

Duct, RH, Incl in 24

1шт.

17

83907330

SPRING NUT

4шт.

18

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

4шт.

19

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

20

84187828

SCREW,Torx, Pan HD, M4.2 x 1.4 x 25mm

4шт.

21

87568776

DIFFUSER

2шт.

22

82034322

AIR DUCT

Lower, RH, ASSY, Incl 12 (Qty 1), 23

1шт.

23

NSS

NOT SOLD SEPARAT

Duct, RH, Incl in 22

1шт.

24

82027039

AIR DUCT

Upper, RH, ASSY, Incl 12 (Qty 1), 14, 16, 17

1шт.

25

82022361

SUPPORT

1шт.

26

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

27

87614773

AIR DUCT

Blower, ASSY, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Duct, Incl in 27

1шт.

29

87567755

SPRING NUT,M5

2шт.

30

87661585

INSULATOR

1шт.

31

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

2шт.

32

82027041

AIR DUCT

Upper, LH, ASSY, Incl 12 (Qty 1), 13

1шт.
