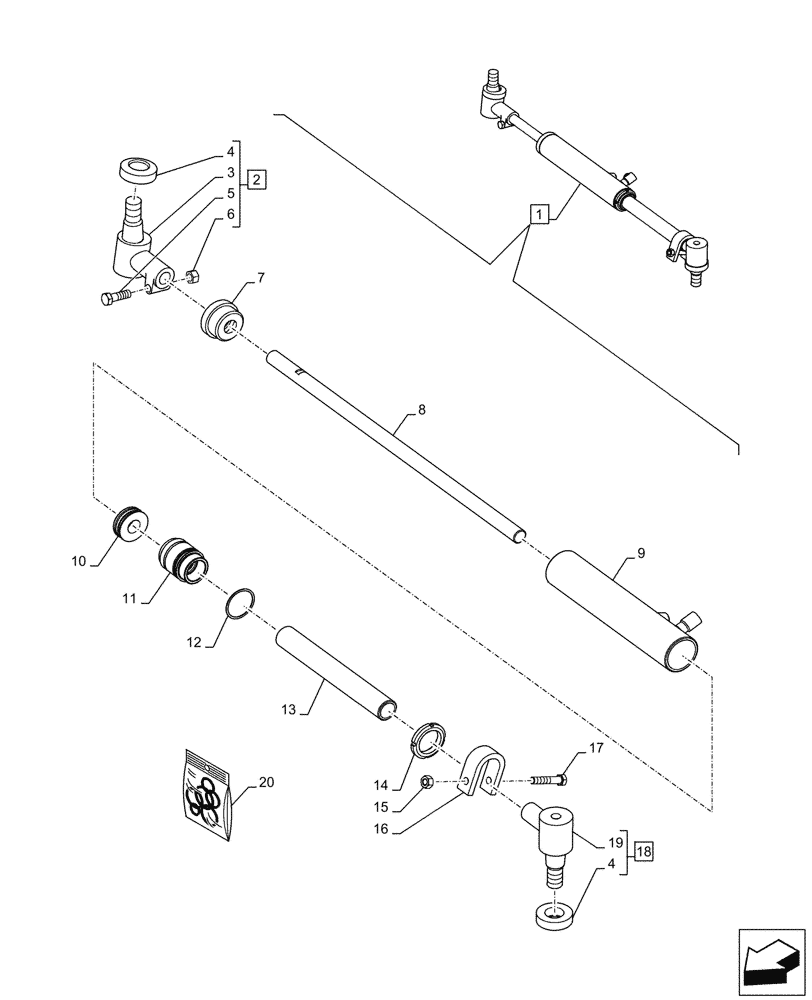

Запчасти Case IH MAXXUM 150 (41.216.AB[02]) - VAR - 759381 - OPERATING CYLINDER, 2WD FRONT AXLE, COMPONENTS (41) - STEERING

1

82037187

STEERING CYLINDER,Double Acting, 25mm Rod, 236.5mm Stroke

ASSY, Incl 2 - 20

1шт.

Part is Included in 2WD Front Axle Assembly P/N 48058524

1шт.

2

81863813

TRACK ROD END ASSY

ASSY, Incl 3, 4 (Qty 1), 5, 6

1шт.

3

NSS

NOT SOLD SEPARAT

Ball Joint, Incl in 2

1шт.

4

84527579

PROTECTION CAP

2шт.

5

304783S36

BOLT,Hex, 1/2"-13 x 1 5/8", G5

1шт.

6

280431

NUT,1/2"-13, G5

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

82037191

BRACKET

1шт.

9

82037189

BARREL

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

11

82037190

TUBE,778 mm Length

1шт.

12

82937000

GASKET

1шт.

13

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

14

82037195

LOCK NUT

1шт.

15

17038425

NUT

1шт.

16

82037182

CLAMP

1шт.

17

82851742

BOLT

M12 x 60mm

1шт.

18

81863815

BALL JOINT,1 1/4" - 12 x 3" L

ASSY, Incl 4 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Ball Joint, Incl in 18

1шт.

20

82037194

SEAL KIT

1шт.
