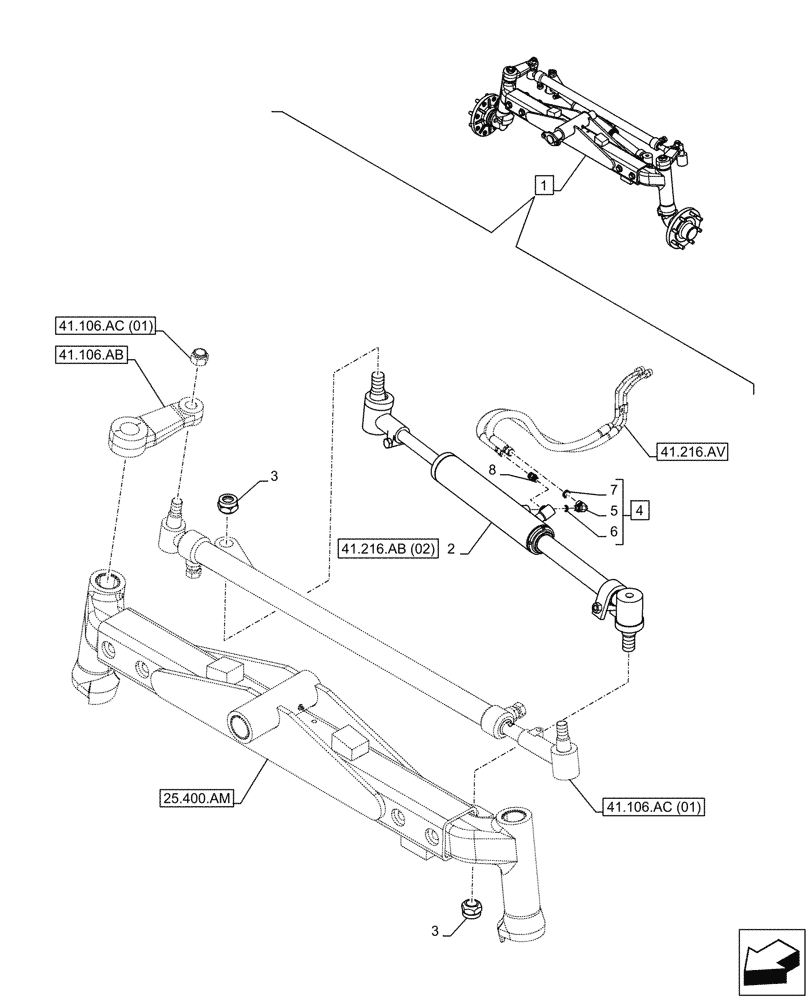

Запчасти Case IH MAXXUM 150 (41.216.AB[01]) - VAR - 759381 - 2WD FRONT AXLE, OPERATING CYLINDER (41) - STEERING

1

48058524

FRONT AXLE

ASSY, Incl 2 - 8

1шт.

See also 2WD Front Axle Components in Figure 25.400.AD, 25.400.AH, 25.400.AL, 25.400.AM, 25.400.AU, 41.106.AB, 41.106.AC (01)

1шт.

2

82037187

STEERING CYLINDER,Double Acting, 25mm Rod, 236.5mm Stroke

ASSY

1шт.

3

83958917

NUT,1"-12

2шт.

4

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

6

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.
