(35.204.BX[08]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, LINE

Запчасти Case IH MAXXUM 150 (35.204.BX[08]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, LINE (35) - HYDRAULIC SYSTEMS

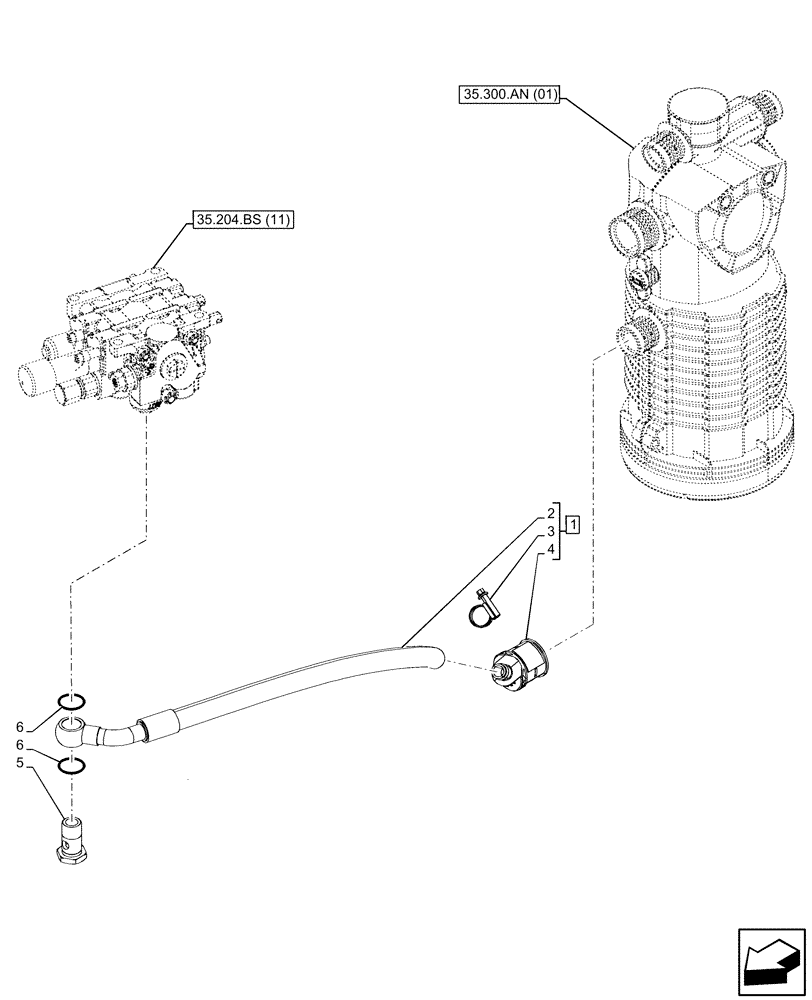

Схема запчастей Case IH MAXXUM 150 - (35.204.BX[08]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, LINE (35) - HYDRAULIC SYSTEMS
35.204.bs (11)
6
4
2
5
3
6
1
35.300.an (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84202624

HOSE ASSY.

MMV Return, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

82039343

HOSE CLAMP,16mm - 27mm

1шт.

4

87330808

ELBOW,45 Deg, 21mm - 12.5mm ID

1шт.

5

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

Выбрано товаров: 6
