Запчасти Case IH MAXXUM 150 (35.204.BX[07]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, LINE (35) - HYDRAULIC SYSTEMS

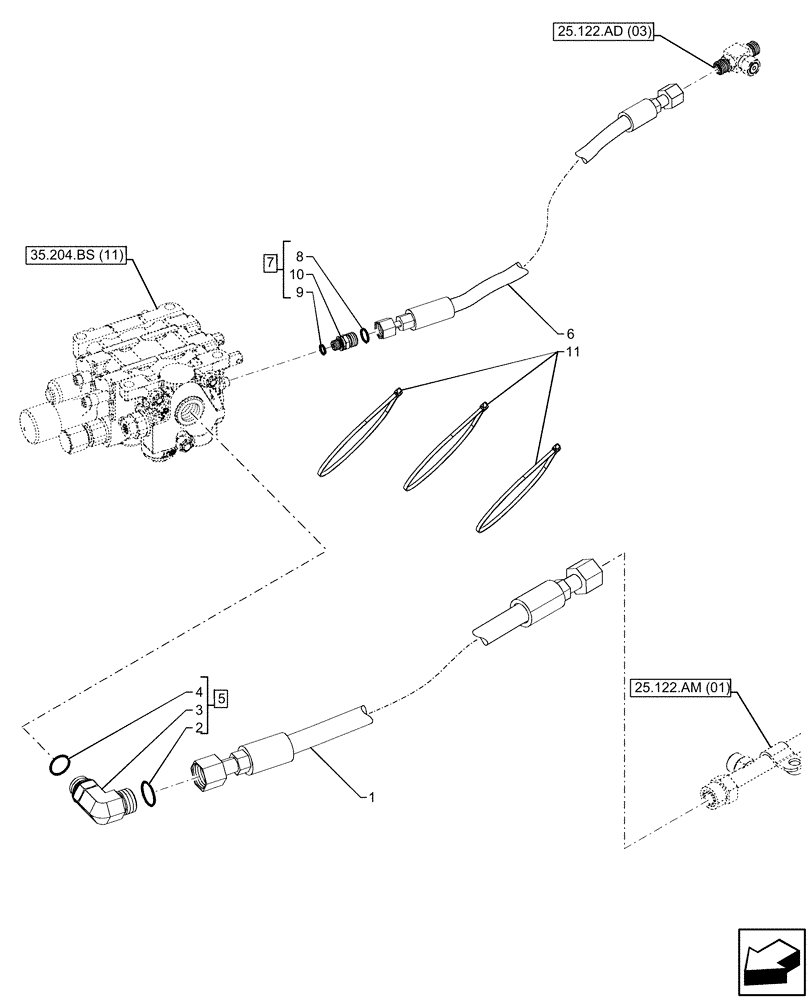

Схема запчастей Case IH MAXXUM 150 - (35.204.BX[07]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, ELECTRICAL, LINE (35) - HYDRAULIC SYSTEMS
25.122.ad (03)
6
11
2
7
3
5
9
4
1
10
8
25.122.am (01)
35.204.bs (11)

Артикул

Название

Примечание

Количество

1

84304690

HYDRAULIC HOSE,705MM L

MMV Supply, 705mm

1шт.

2

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5194728

90 ELBOW

ASSY, Incl 2 - 4

1шт.

6

84202626

FLEXIBLE HOSE

MMV Load Sense, 819.4mm

1шт.

7

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

ASSY, Incl 8 - 10

1шт.

8

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

11

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

200mm

3шт.

Выбрано товаров: 11
