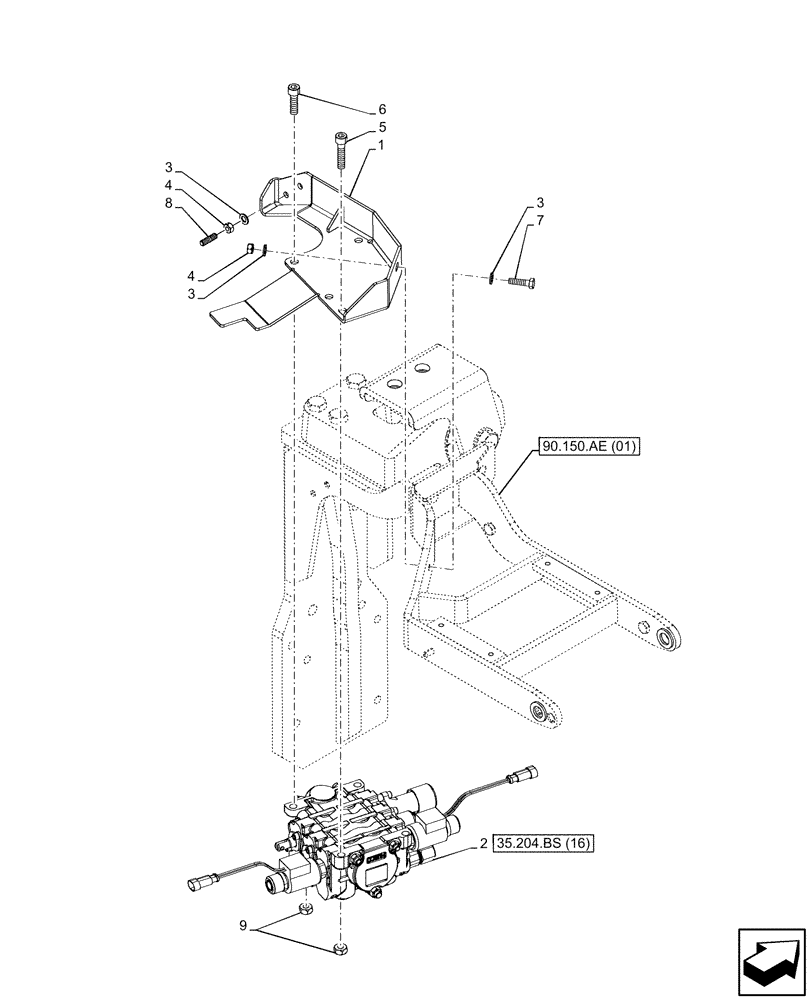

Запчасти Case IH MAXXUM 150 (35.204.BS[15]) - VAR - 758351 - 3 MID-MOUNT CONTROL VALVES, MECHANICAL, SUPPORT, NA (35) - HYDRAULIC SYSTEMS

1

47551840

BRACKET

1шт.

2

47367743

VALVE SECTION

MMV, ASSY

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16100814

NUT,M8, Cl 8, DAC

3шт.

5

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

6

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

7

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

13516624

STUD,M8 x 28mm L

M8 x 1.2 x 16mm

2шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.
