Запчасти Case IH MAXXUM 150 (35.204.BS[12]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, MECHANICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS

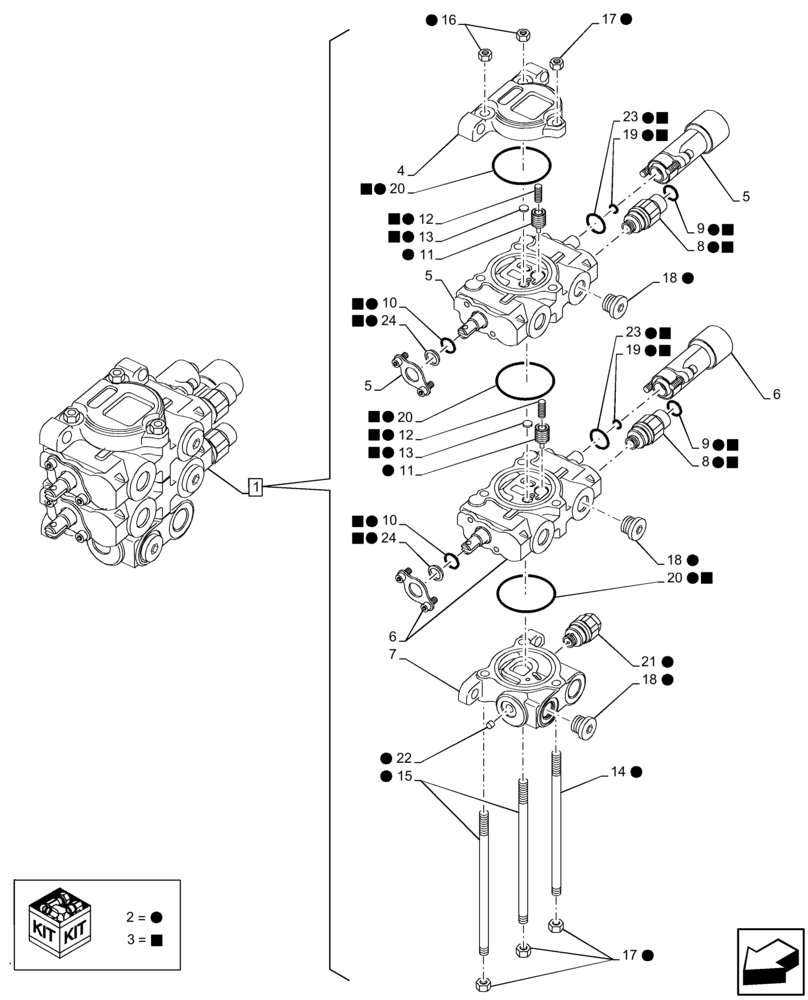

Схема запчастей Case IH MAXXUM 150 - (35.204.BS[12]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, MECHANICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
19
17
2
3
3
3
23
15
5
2
2
2
3
2
11
5
3
2
2
2
22
14
3
6
3
18
5
20
2
2
21
2
3
6
8
19
20
3
3
12
2
23
10
9
3
2
3
20
3
2
2
3
2
7
24
16
3
13
13
3
2
4
18
11
3
1
2
3
2
24
3
2
17
8
3
3
9
10
18
12
2
2

Артикул

Название

Примечание

Количество

1

47367745

VALVE SECTION

ASSY, MMV, Incl 2 - 24

1шт.

1

47367745R

REMAN-HYD VALVE

Reman ASSY, MMV, Incl 2 - 24

1шт.

1

47367745C

CORE-VALVE HYD

Core Return Number

1шт.

2

82039635

SERVICE KIT

Incl 14 - 24

1шт.

3

82034757

SEAL KIT

Incl 19, 20, 23, 24

1шт.

4

82030637

HYD VALVE SECTION

1шт.

5

82030635

HYDRAULIC VALVE

1шт.

6

47373565

HYD VALVE SECTION

1шт.

7

82030632

HYD VALVE SECTION

1шт.

8

86582451

HYD CONNECTOR

2шт.

9

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

10

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

11

75289566

SPOOL

2шт.

12

NSS

NOT SOLD SEPARAT

Kit, Incl in 2

2шт.

13

75312804

DISC

2шт.

14

NSS

NOT SOLD SEPARAT

Tie Rod 3/8-24UNF-2A, Incl in 2

1шт.

15

NSS

NOT SOLD SEPARAT

Tie Rod 5-16-18UNC-2A, Incl in 2

2шт.

16

NSS

NOT SOLD SEPARAT

Nut 3/8-24UNF-2B, Incl in 2

2шт.

17

NSS

NOT SOLD SEPARAT

Nut 5/16-18UNC-2B, Incl in 2

4шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

3шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 and Incl in 3

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 and Incl in 3

3шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 and Incl in 3

2шт.

24

NSS

NOT SOLD SEPARAT

Seal, Incl in 2 and Incl in 3

3шт.

Выбрано товаров: 26
