(35.204.BS[11]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, MECHANICAL, SUPPORT

Запчасти Case IH MAXXUM 150 (35.204.BS[11]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, MECHANICAL, SUPPORT (35) - HYDRAULIC SYSTEMS

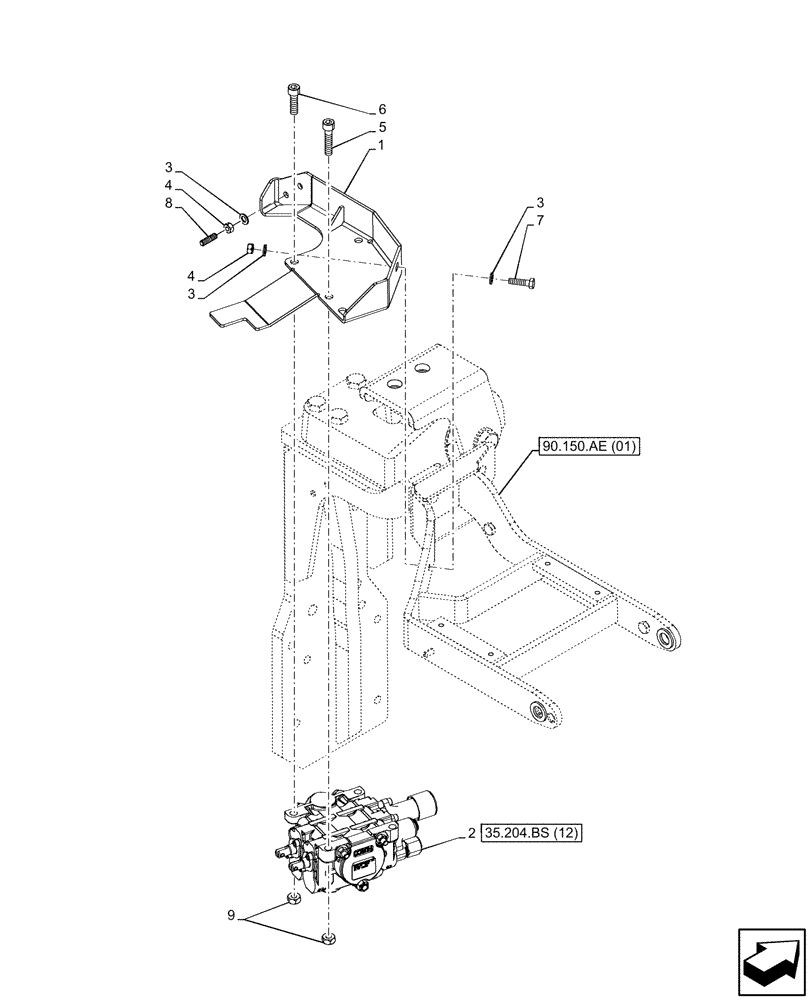

Схема запчастей Case IH MAXXUM 150 - (35.204.BS[11]) - VAR - 758344, 758443 - 2 MID-MOUNT CONTROL VALVES, MECHANICAL, SUPPORT (35) - HYDRAULIC SYSTEMS
35.204.bs (12)
9
6
4
2
4
3
5
8
3
7
1
3
90.150.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47551840

BRACKET

1шт.

2

47367745

VALVE SECTION

MMV, ASSY

1шт.

2

47367745R

REMAN-HYD VALVE

Reman MMV, ASSY

1шт.

2

47367745C

CORE-VALVE HYD

Core Return Number

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16100814

NUT,M8, Cl 8, DAC

3шт.

5

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

6

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

7

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

13516624

STUD,M8 x 28mm L

M8 x 1.2 x 16mm

2шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.
