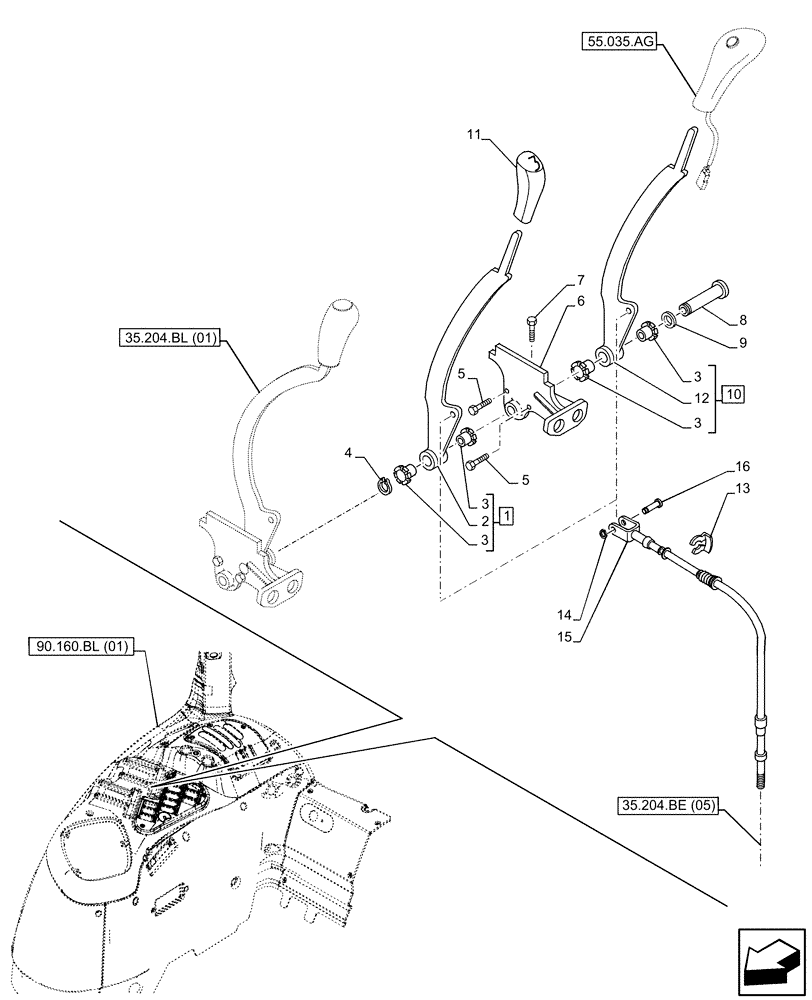

Запчасти Case IH MAXXUM 150 (35.204.BL[03]) - VAR - 758642 - 4 REMOTE CONTROL VALVE, W/ HYDRAULIC LINKAGE ADJUSTMENT, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

82036839

LEVER

ASSY, 3rd & 4th, Incl 3 (Qty 2), 14

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

82035633

BUSHING

4шт.

4

11088171

SNAP RING,M11

1шт.

5

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

82038176

LEVER

ASSY, 4th with Hyd. Adjust Linkage, Incl 3 (Qty 2), 12

1шт.

11

82037912

KNOB

N. 3, Black

1шт.

12

NSS

NOT SOLD SEPARAT

Lever, Incl in 10

1шт.

13

82007837

LOCKING RING

2шт.

14

11087771

LOCKING RING

2шт.

15

87678198

CABLE,1828mm L

Remote Control

2шт.

16

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

2шт.
