(35.204.BE[30]) - VAR - 743685, 758358 - 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT

Запчасти Case IH MAXXUM 150 (35.204.BE[30]) - VAR - 743685, 758358 - 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT (35) - HYDRAULIC SYSTEMS

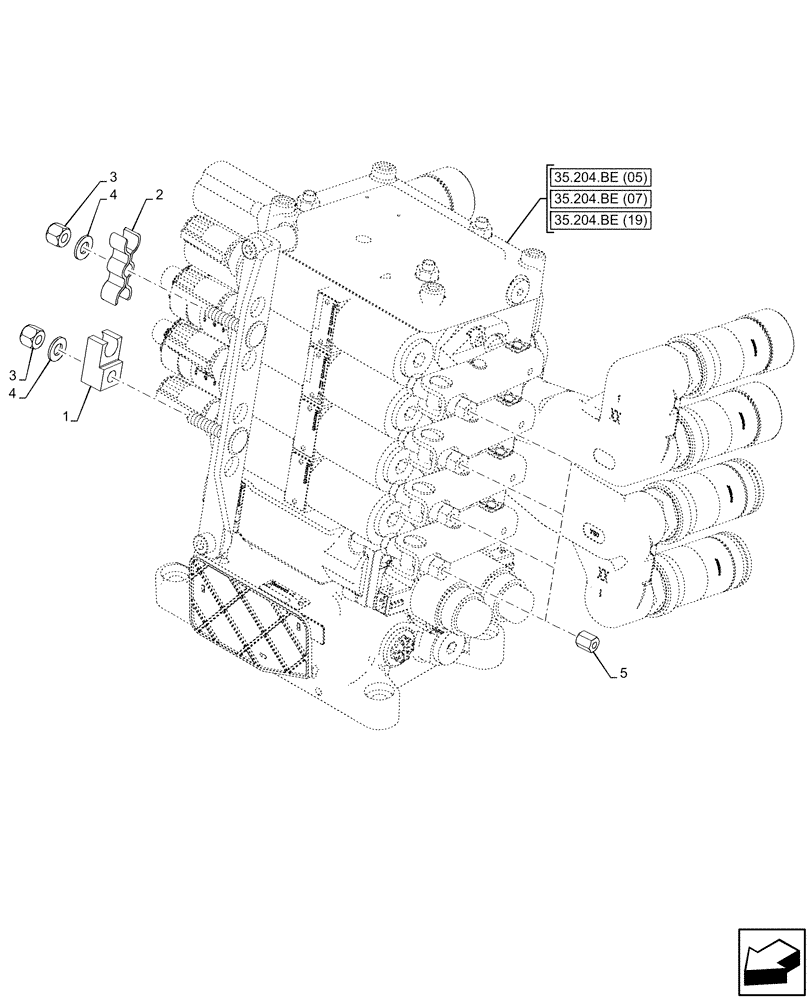

Схема запчастей Case IH MAXXUM 150 - (35.204.BE[30]) - VAR - 743685, 758358 - 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT (35) - HYDRAULIC SYSTEMS
35.204.be (19)
3
4
2
5
4
1
3
35.204.be (05)
35.204.be (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132225

BRACKET

1шт.

2

5191951

CLAMP,3 Hoses

1шт.

3

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

82012528

NUT,Hex, M6 x 1

4шт.

Выбрано товаров: 5
