(35.204.BE[13]) - VAR - 743740 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, 2, CONFIGURABLE

Запчасти Case IH MAXXUM 150 (35.204.BE[13]) - VAR - 743740 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, 2, CONFIGURABLE (35) - HYDRAULIC SYSTEMS

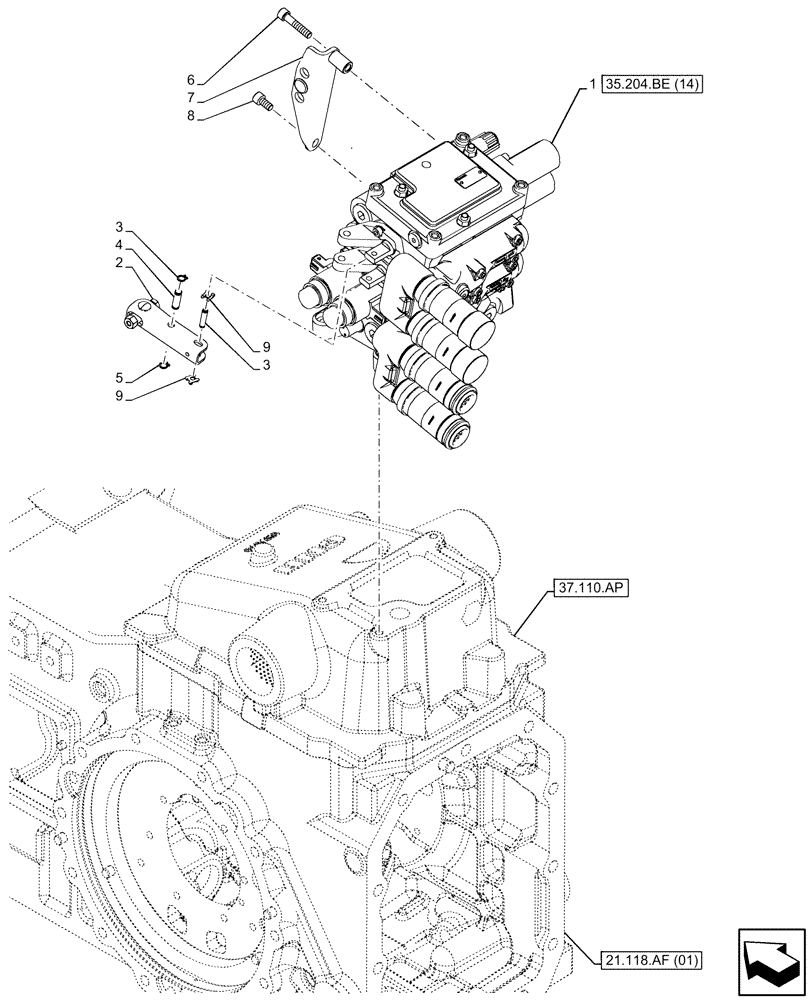

Схема запчастей Case IH MAXXUM 150 - (35.204.BE[13]) - VAR - 743740 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, 2, CONFIGURABLE (35) - HYDRAULIC SYSTEMS
35.204.be (14)
7
8
5
6
3
9
2
9
4
1
3
21.118.af (01)
37.110.ap
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47551309

REMOTE CONTROL VALVE

ASSY

1шт.

2

87358094

LEVER

2шт.

3

5193177

PIN,6mm OD x 29.48mm L

2шт.

4

5113008

PIN,8mm OD x 26mm L

2шт.

5

11065676

SNAP RING,M8, Ext

4шт.

6

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

7

84486550

STOP

1шт.

8

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

9

11063971

SPRING CLIP,M6

4шт.

Выбрано товаров: 9
