Запчасти Case IH MAXXUM 150 (35.204.BE[10]) - VAR - 390840 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, COMPONENTS (35) - HYDRAULIC SYSTEMS

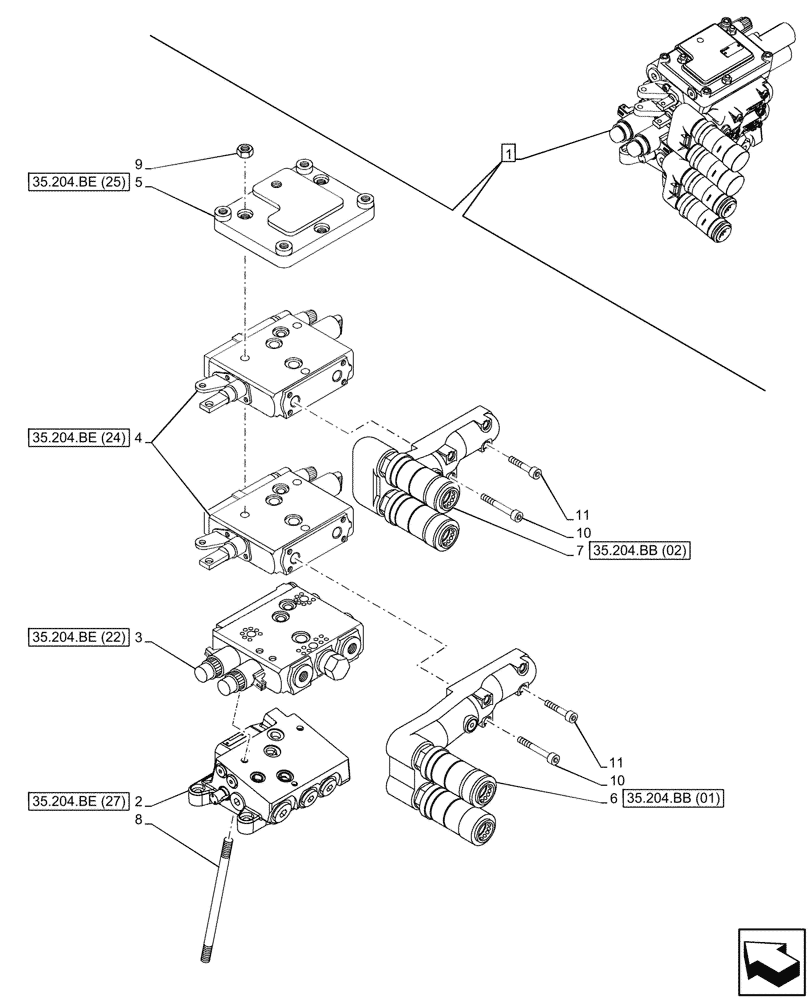

Схема запчастей Case IH MAXXUM 150 - (35.204.BE[10]) - VAR - 390840 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.be (27)
10
2
11
10
5
4
8
9
6
11
7
1
3
35.204.be (22)
35.204.bb (02)
35.204.bb (01)
35.204.be (24)
35.204.be (25)

Артикул

Название

Примечание

Количество

1

47533208

REMOTE CONTROL VALVE

ASSY, Incl 2 - 11

1шт.

2

5192186

DISTRIBUTOR

ASSY

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

87546169

CONTROL VALVE

ASSY

2шт.

4

87546169R

REMAN-HYD VALVE

2шт.

4

87546169C

CORE-VALVE HYD

Return Number

2шт.

5

5192188

BODY

ASSY

1шт.

6

47532947

MANIFOLD

Group 1, ASSY

1шт.

7

47532950

MANIFOLD

Group 2, ASSY

1шт.

8

5195168

TIE-ROD,M8

3шт.

9

5195169

NUT,M8

3шт.

10

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

4шт.

11

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

4шт.

Выбрано товаров: 15
