Запчасти Case IH MAXXUM 150 (35.124.AE) - VAR - 758453, 758454 - 3 POINT HITCH, REAR, W/ HYDRAULIC TOP LINK, HOSE (35) - HYDRAULIC SYSTEMS

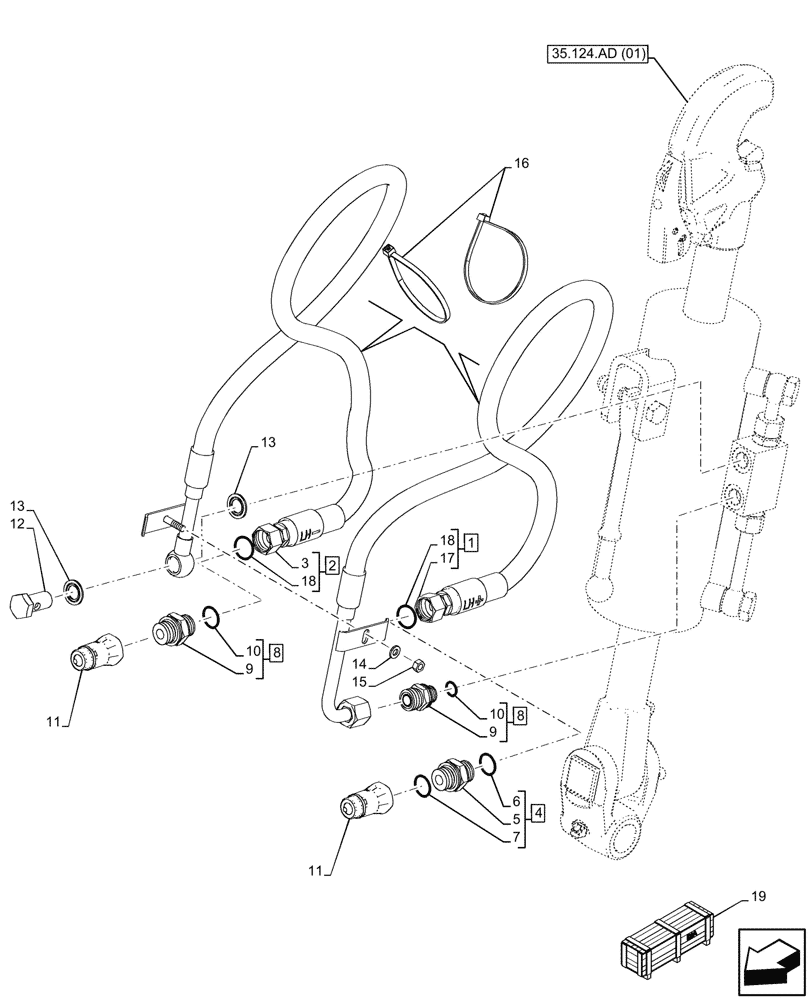

Схема запчастей Case IH MAXXUM 150 - (35.124.AE) - VAR - 758453, 758454 - 3 POINT HITCH, REAR, W/ HYDRAULIC TOP LINK, HOSE (35) - HYDRAULIC SYSTEMS
35.124.ad (01)
11
16
9
13
15
11
17
5
7
8
14
6
18
18
10
19
4
8
12
3
10
13
2
1
9

Артикул

Название

Примечание

Количество

1

47780144

HOSE,8mm ID x 1115mm L

ASSY, Top Link Piston, 8mm ID x 1115mm, Incl 17, 18 (Qty 1)

1шт.

2

47767671

HOSE,8mm ID x 1120mm L

ASSY, Top Link Piston, 8mm ID x 1120mm, Incl 3, 18 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

4

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 4

1шт.

6

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.

7

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

8

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

ASSY, Incl 9 (Qty 1), 10 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 8

2шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

11

83972881

COUPLING

2шт.

12

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

1шт.

13

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

2шт.

14

14496404

WASHER,M6 x 12 x 2 Thk

1шт.

15

9706755

NUT,M6, Cl 8

1шт.

16

14560287

CABLE TIE,207.00mm L

2шт.

17

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

719790034

DIA KIT, TRACTOR

Hydraulic Adjust Top Link, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 20
