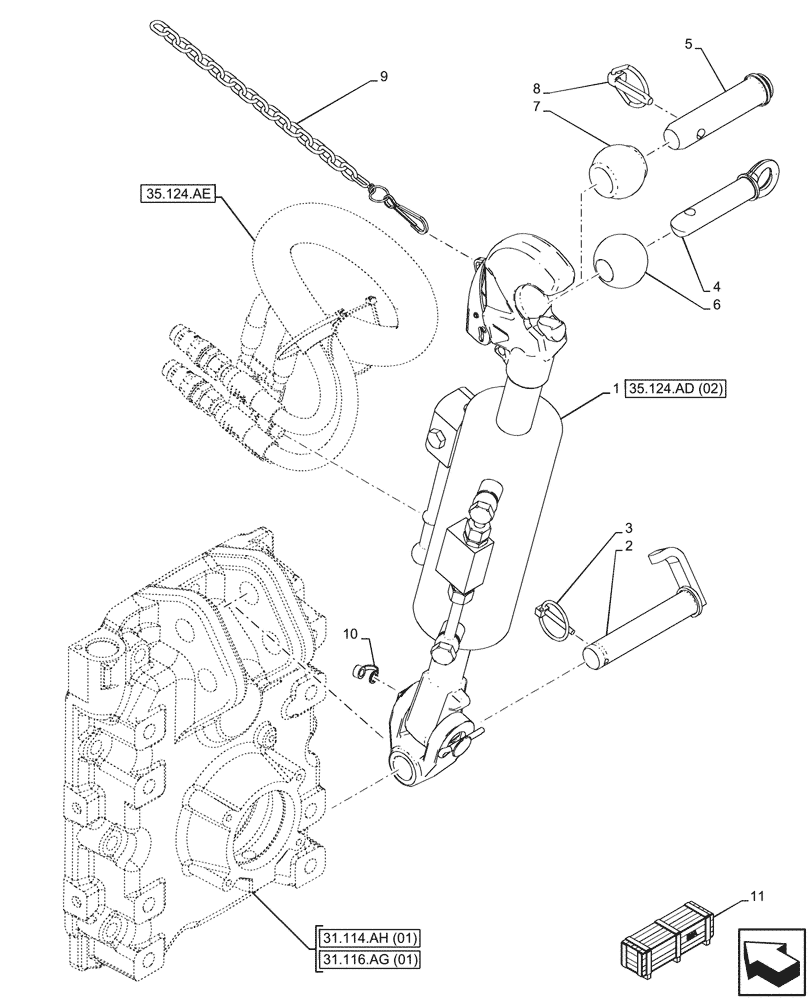

Запчасти Case IH MAXXUM 150 (35.124.AD[01]) - VAR - 758453, 758454 - 3 POINT HITCH, REAR, W/ HYDRAULIC TOP LINK (35) - HYDRAULIC SYSTEMS

1

84517023

UPPER LINK

ASSY

1шт.

2

5191449

PIN,27.9mm OD x 152mm L

1шт.

3

82014909

LOCK PIN,5.5mm OD

1шт.

4

822483

PIN,25.5mm OD x 137mm L

1шт.

5

44015196

PIN,31.75mm OD x 146mm L

1шт.

6

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

1шт.

7

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

1шт.

8

5166585

LOCK PIN,11mm OD

1шт.

9

5174402

LINK CHAIN,1500mm L

1шт.

10

47983406

PLUG,Greasing point protection,

1шт.

11

719790034

DIA KIT, TRACTOR

Hydraulic Adjust Top Link, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
