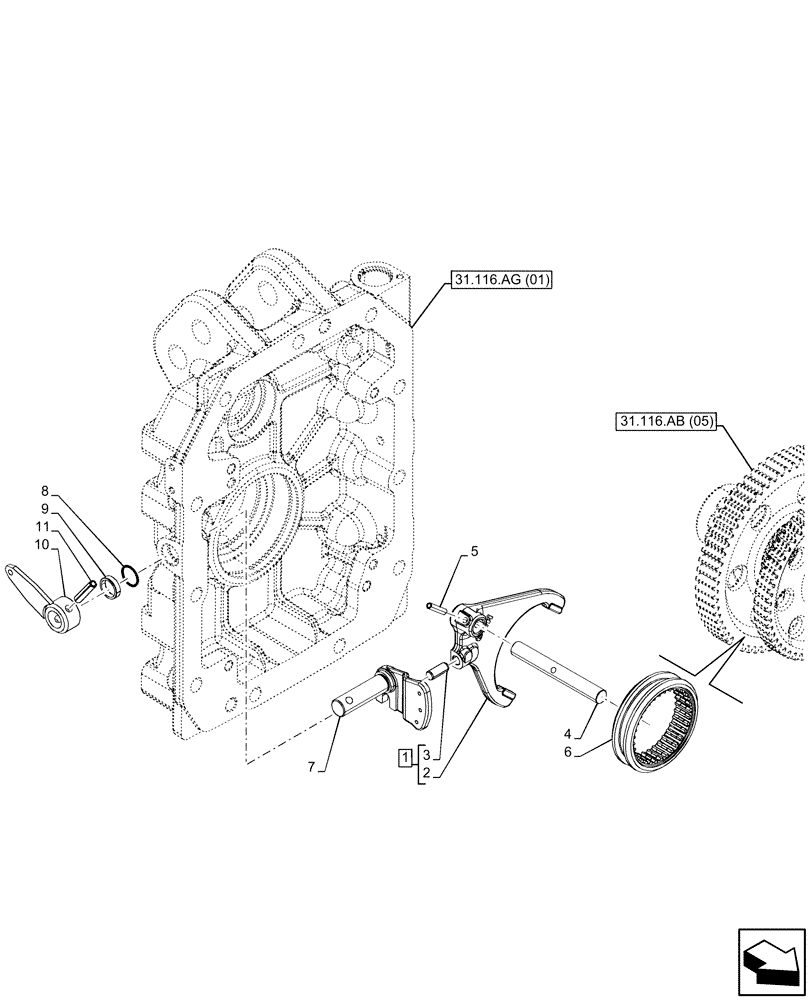

Запчасти Case IH MAXXUM 150 (31.116.AB[06]) - VAR - 390801, 390802, 758436, 758437, 758584, 758585 - PTO, DRIVEN SHAFT, FORK (540E/1000/1000E RPM) (31) - IMPLEMENT POWER TAKE OFF

1

87726010

CLUTCH FORK

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Fork, Incl in 1

1шт.

3

5154545

PIN,10mm OD x 25mm L

1шт.

4

5199220

ROD,16mm OD x 128mm L

1шт.

5

13910370

ROLL PIN,6mm OD x 30mm L

1шт.

6

87578126

SLEEVE,Z12

1шт.

7

5198128

PIN,20mm OD x 68mm L

1шт.

8

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

9

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

10

87578133

CONTROL LEVER

1шт.

11

86548577

PIN,8mm OD x 40mm L, Slotted

1шт.
