Запчасти Case IH MAXXUM 150 (25.102.AC[20]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, DIFFERENTIAL, BEVEL GEAR (25) - FRONT AXLE SYSTEM

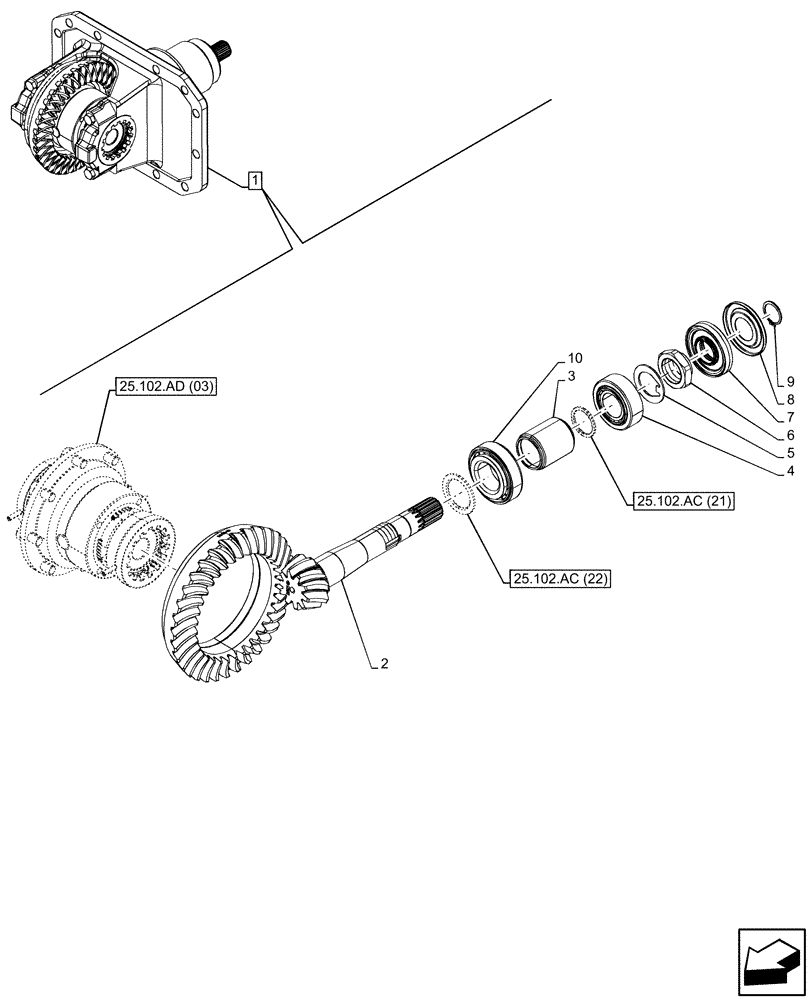

Схема запчастей Case IH MAXXUM 150 - (25.102.AC[20]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, DIFFERENTIAL, BEVEL GEAR (25) - FRONT AXLE SYSTEM
25.102.ad (03)
8
5
7
3
9
10
1
4
2
25.102.ac (21)
6
25.102.ac (22)

Артикул

Название

Примечание

Количество

1

87530113

DIFFERENTIAL ASSY

ASSY, Incl 2 - 10

1шт.

See also Differential Components in Figure 25.102.AC (19), 25.102.AC (21), 25.102.AC (22), 25.102.AD (03)

1шт.

2

84527568

GEAR SET,Ring and Pinion, Ratio 10/34

Ratio 10/34

1шт.

3

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

84285936

SPECIAL WASHER

1шт.

6

84289068

CROWN NUT,M35 x 1.5

1шт.

7

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

8

87527839

SEAL PROTECTION

1шт.

9

11067876

SNAP RING,M30, Ext

1шт.

10

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

Выбрано товаров: 11
