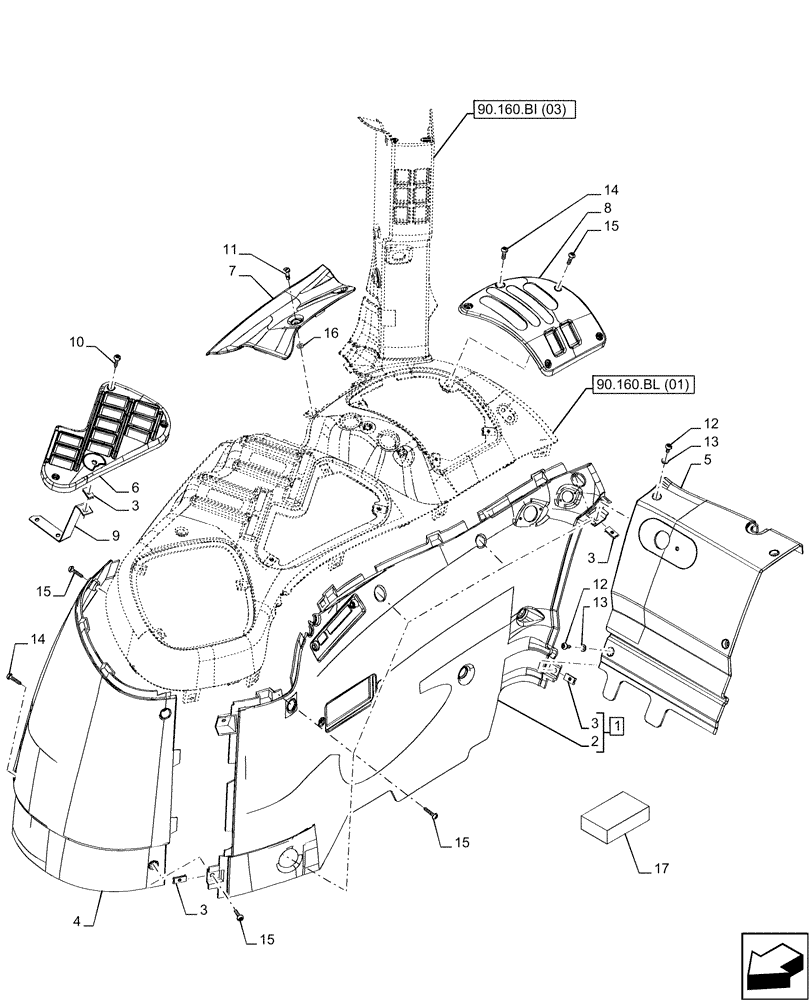

Запчасти Case IH MAXXUM 150 (90.160.BL[03]) - VAR - 392195, 392204, 392440, 743764, 743766, 758413, 758414, 758415, 758416, 758497, 758581 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87710212

PANEL

Lower, RH, ASSY, Incl 2, 3 (Qty 3)

1шт.

2

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

3

87567755

SPRING NUT,M5

4шт.

4

47057394

SOFT TRIM

Front Cover

1шт.

5

84213361

PANEL

Electronics Module, Grey

1шт.

6

87598926

PANEL

1шт.

7

47057398

SOFT TRIM

Fuse Box Cover

1шт.

8

47057011

PANEL

PTO

1шт.

9

87570997

BRACKET

1шт.

10

84187814

SCREW

3шт.

11

84193552

SCREW,M6 x 18mm

2шт.

12

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

14

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

2шт.

15

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

12шт.

16

84386102

WASHER

2шт.

17

81870060

FOAM INSULATION

1шт.
