Запчасти Case IH MAXXUM 150 (90.124.AQ[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, LUMBAR, ADJUSTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

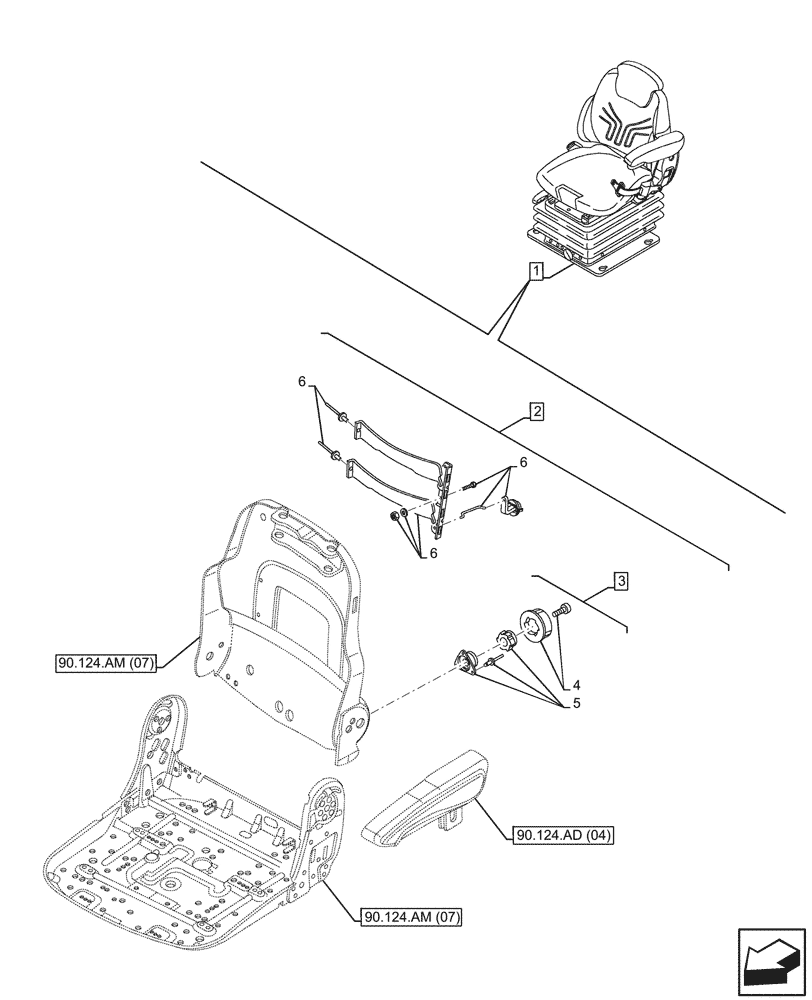

Схема запчастей Case IH MAXXUM 150 - (90.124.AQ[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, LUMBAR, ADJUSTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (07)
6
4
1
2
3
6
5
6
90.124.ad (04)
90.124.am (07)

Артикул

Название

Примечание

Количество

1

47725248

DRIVER SEAT

ASSY, Deluxe Seat with Low Frequency air suspension with heated cushions & Belt, Incl 2 - 6

1шт.

See also Driver Seat Components in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AH (04), 90.124.AK (04), 90.124.AL (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (04), 90.151.AD (04)

1шт.

2

345767A1

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

84191199

ACTUATOR

ASSY, Incl 4, 5

1шт.

4

82034964

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Actuator Lumbar Support, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Lumbar Support, Incl in 2

1шт.

Выбрано товаров: 7
