(88.100.55[05]) - DIA KIT, BRACKET MONITOR EQUIPMENT

Запчасти Case IH MAXXUM 150 (88.100.55[05]) - DIA KIT, BRACKET MONITOR EQUIPMENT (88) - ACCESSORIES

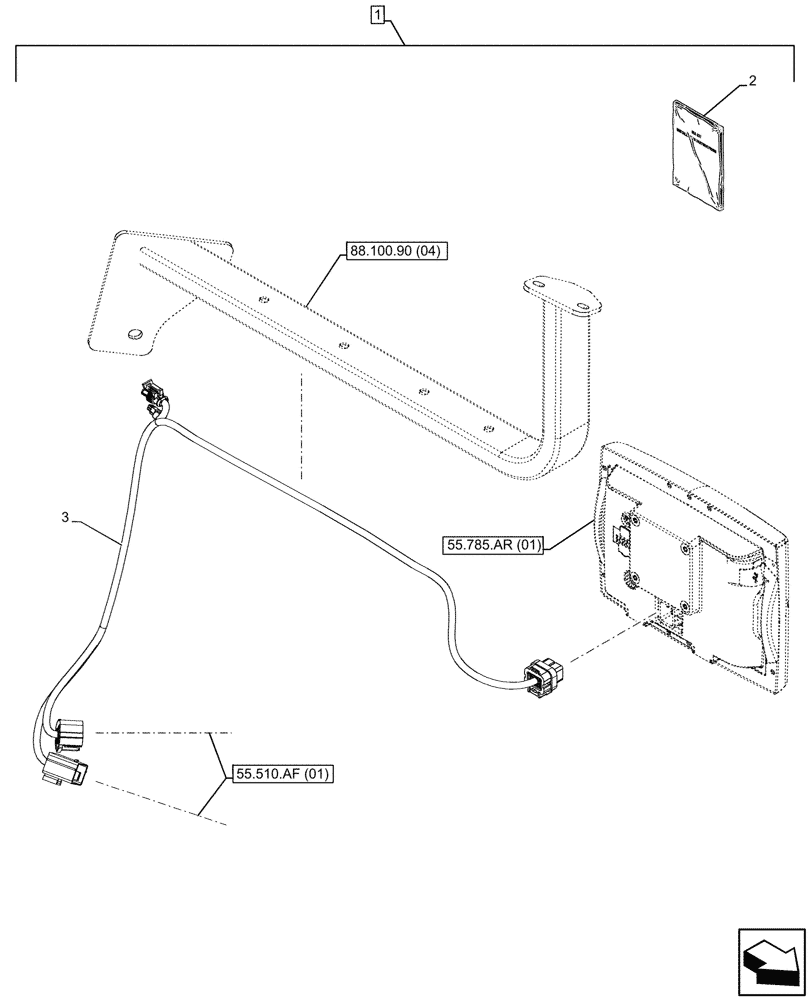

Схема запчастей Case IH MAXXUM 150 - (88.100.55[05]) - DIA KIT, BRACKET MONITOR EQUIPMENT (88) - ACCESSORIES
55.785.ar (01)
3
2
1
55.510.af (01)
88.100.90 (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719343014

DIA KIT, TRACTOR

Bracket and harness for Installation Display, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47684508

INSTRUCTION

1шт.

3

84174905

WIRE HARNESS

Connecting Display

1шт.

Выбрано товаров: 4
