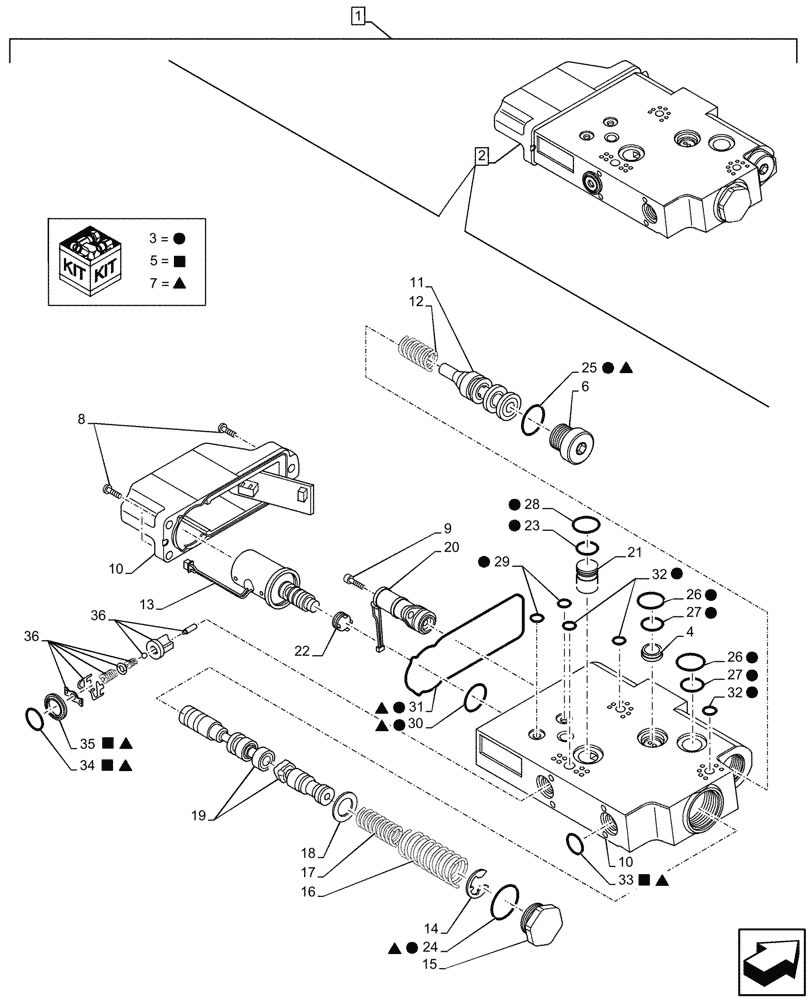

Запчасти Case IH MAXXUM 150 (88.100.35[12]) - DIA KIT, 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, CONTROL VALVE SECTION, COMPONENTS (88) - ACCESSORIES
![Схема запчастей Case IH MAXXUM 150 - (88.100.35[12]) - DIA KIT, 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, CONTROL VALVE SECTION, COMPONENTS (88) - ACCESSORIES](https://partsell.ru/storage/images/caseih/5467668.png)
№
Артикул
Название
Примечание
Количество
1
710020054
DIA KIT, TRACTOR
Additional Rear Remote Valve (from 3 to 4), Incl 2 - 36
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
84230181
HYD VALVE SECTION
ASSY, Incl 3 - 36
1шт.
3
84270830
SEAL KIT
Incl 23 - 32
1шт.
4
84279974
VALVE POPPET
1шт.
5
84125422
SEAL KIT
Incl 33 - 35
1шт.
6
47129438
PLUG
1шт.
7
84270831
SEAL KIT
Incl 24, 25, 30, 31, 33 - 35
1шт.
8
84340200
SCREW,Phillips Drive, Pan HD, M5 x 18mm, Cl 10.9
3шт.
9
14304631
HEX SOC SCREW,M5 x 14mm, Cl 10.9, Full Thd
2шт.
10
NSS
NOT SOLD SEPARAT
Valve Housing, Incl in 2
1шт.
11
NSS
NOT SOLD SEPARAT
Valve Spool, Incl in 2
1шт.
12
NSS
NOT SOLD SEPARAT
Compression Spring, Incl in 2
1шт.
13
NSS
NOT SOLD SEPARAT
Solenoid, Incl in 2
1шт.
14
NSS
NOT SOLD SEPARAT
Locking Washer, Incl in 2
1шт.
15
NSS
NOT SOLD SEPARAT
Screw Plug, Incl in 2
1шт.
16
NSS
NOT SOLD SEPARAT
Compression Spring, Incl in 2
1шт.
17
NSS
NOT SOLD SEPARAT
Compression Spring, Incl in 2
1шт.
18
NSS
NOT SOLD SEPARAT
Spring Disk, Incl in 2
1шт.
19
NSS
NOT SOLD SEPARAT
Valve Spool, Incl in 2
1шт.
20
NSS
NOT SOLD SEPARAT
Coil, Incl in 2
1шт.
21
NSS
NOT SOLD SEPARAT
Bushing, Incl in 2
1шт.
22
NSS
NOT SOLD SEPARAT
Strainer, Incl in 2
1шт.
23
NSS
NOT SOLD SEPARAT
O-Ring, 14.8 x 1, Incl in 3
1шт.
24
NSS
NOT SOLD SEPARAT
O-Ring, 29.4 x 2.1 HNBR, Incl in 3 and Incl in 7
1шт.
25
NSS
NOT SOLD SEPARAT
O-Ring, 19.4 x 2.1 HNBR, Incl in 3 and Incl in 7
1шт.
26
NSS
NOT SOLD SEPARAT
Support Ring, 24.5 x 2.15, Incl in 3
2шт.
27
NSS
NOT SOLD SEPARAT
O-Ring, 18 x 2.5 HNBR, Incl in 3
2шт.
28
NSS
NOT SOLD SEPARAT
O-Ring, 20 x 2.5 HNBR, Incl in 3
1шт.
29
NSS
NOT SOLD SEPARAT
O-Ring, 8 x 2 HNBR, Incl in 3
2шт.
30
NSS
NOT SOLD SEPARAT
O-Ring, 23 x 2.5 HNBR, Incl in 3 and Incl in 7
1шт.
31
NSS
NOT SOLD SEPARAT
Sealing Frame, Incl in 3 and Incl in 7
1шт.
32
NSS
NOT SOLD SEPARAT
Shim, 11.8 x 0.04, Incl in 3
3шт.
33
NSS
NOT SOLD SEPARAT
O-Ring, 15 x 2.5 HNBR, Incl in 5 and Incl in 7
1шт.
34
NSS
NOT SOLD SEPARAT
O-Ring, 17 x 2.5 HNBR, Incl in 5 and Incl in 7
1шт.
35
NSS
NOT SOLD SEPARAT
Washer, Incl in 5 and Incl in 7
1шт.
36
84270832
KIT
1шт.
Выбрано товаров: 37
