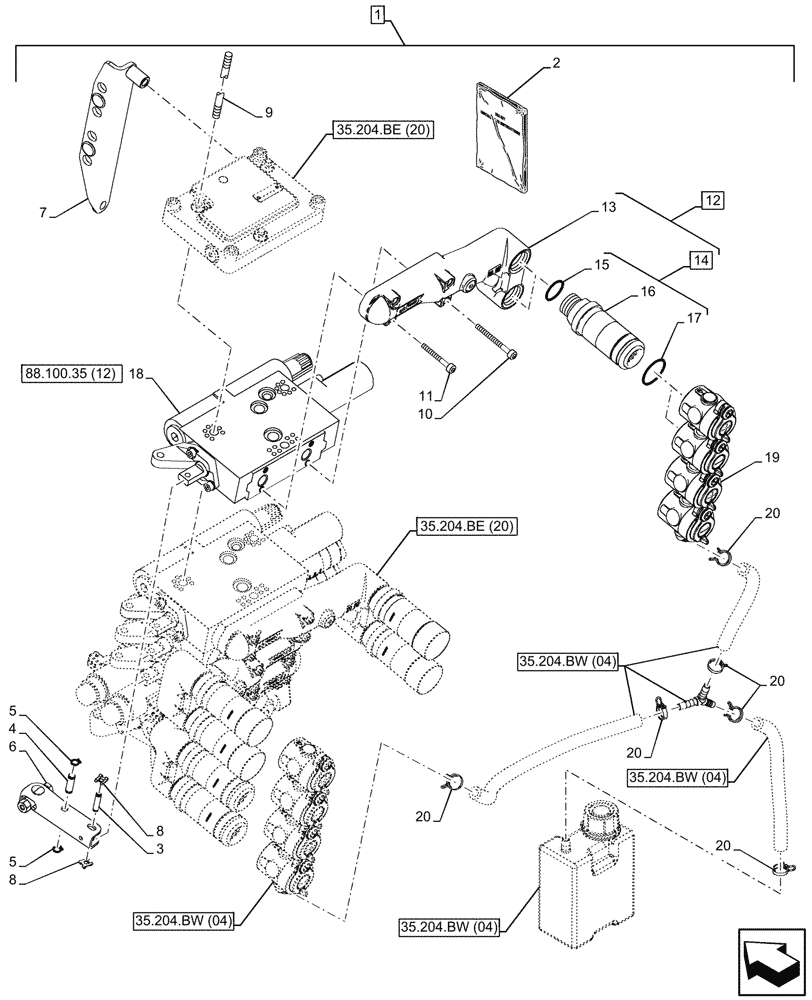

Запчасти Case IH MAXXUM 150 (88.100.35[11]) - DIA KIT, 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT (88) - ACCESSORIES

1

710020054

DIA KIT, TRACTOR

Additional Rear Remote Valve (from 3 to 4), Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47774960

INSTRUCTION

1шт.

3

5193177

PIN,6mm OD x 29.48mm L

1шт.

4

5113008

PIN,8mm OD x 26mm L

1шт.

5

11065676

SNAP RING,M8, Ext

2шт.

6

87358094

LEVER

1шт.

7

84486547

BRACKET

1шт.

8

11063971

SPRING CLIP,M6

2шт.

9

47129476

THREADED TIE-ROD,M8

3шт.

10

47129475

HEX SOC SCREW,M6 x 50mm

2шт.

11

47129474

HEX SOC SCREW,M6 x 35mm

2шт.

12

47532971

MANIFOLD

ASSY, Group 4, Incl 13 - 17

1шт.

13

47667009

MANIFOLD

1шт.

14

47370116

COUPLING

ASSY, Incl 15 (Qty 1), 16 (Qty 1), 17 (Qty 1)

2шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

16

NSS

NOT SOLD SEPARAT

Body, Incl in 14

2шт.

17

87382012

SEAL KIT

2шт.

18

87546169

CONTROL VALVE

ASSY

1шт.

19

47891315

DUST CAP,4 Ports, Brown Clips, Black

RH, 4 Port Brown Black

1шт.

20

13423370

CLAMP,13.6mm - 15.1mm

6шт.
