Запчасти Case IH MAXXUM 150 (37.110.AC[02]) - VAR - 342392, 758473, 758475, 758544 - 3 POINT HITCH, REAR, HYDRAULIC LIFT, MOUNTING PARTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

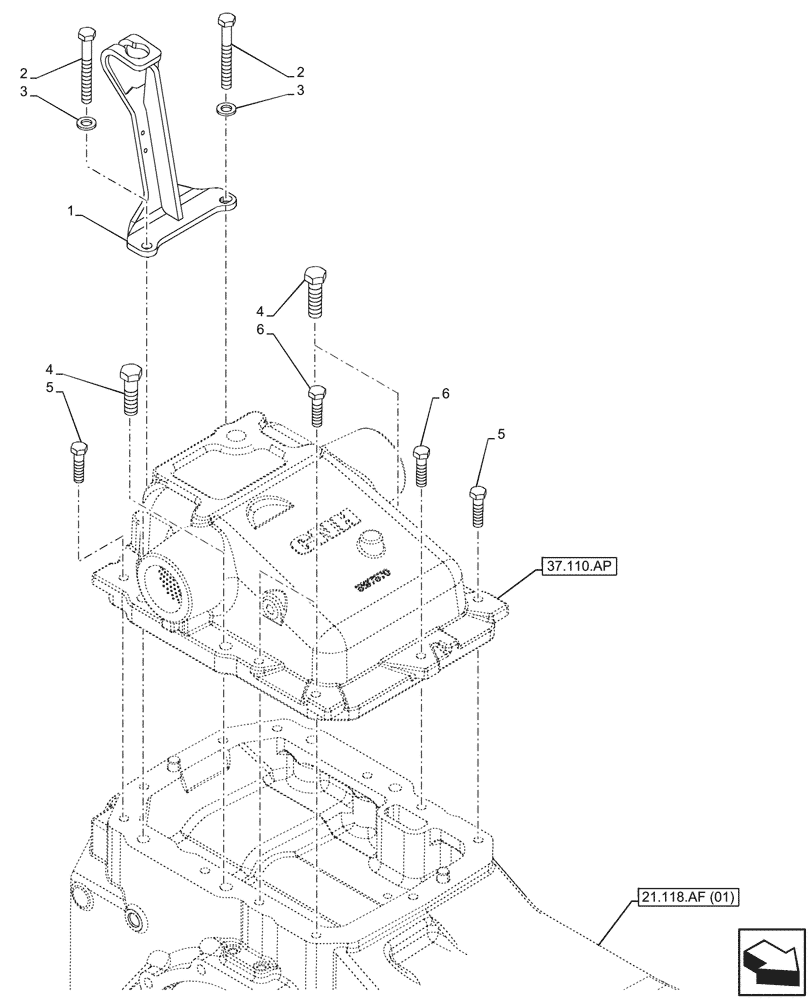

Схема запчастей Case IH MAXXUM 150 - (37.110.AC[02]) - VAR - 342392, 758473, 758475, 758544 - 3 POINT HITCH, REAR, HYDRAULIC LIFT, MOUNTING PARTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.ap
6
4
6
4
3
3
1
5
2
5
2
21.118.af (01)

Артикул

Название

Примечание

Количество

1

47798297

BRACKET

1шт.

2

15541621

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

2шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

4

15981021

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

4шт.

5

86642435

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

6

86642440

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 6
