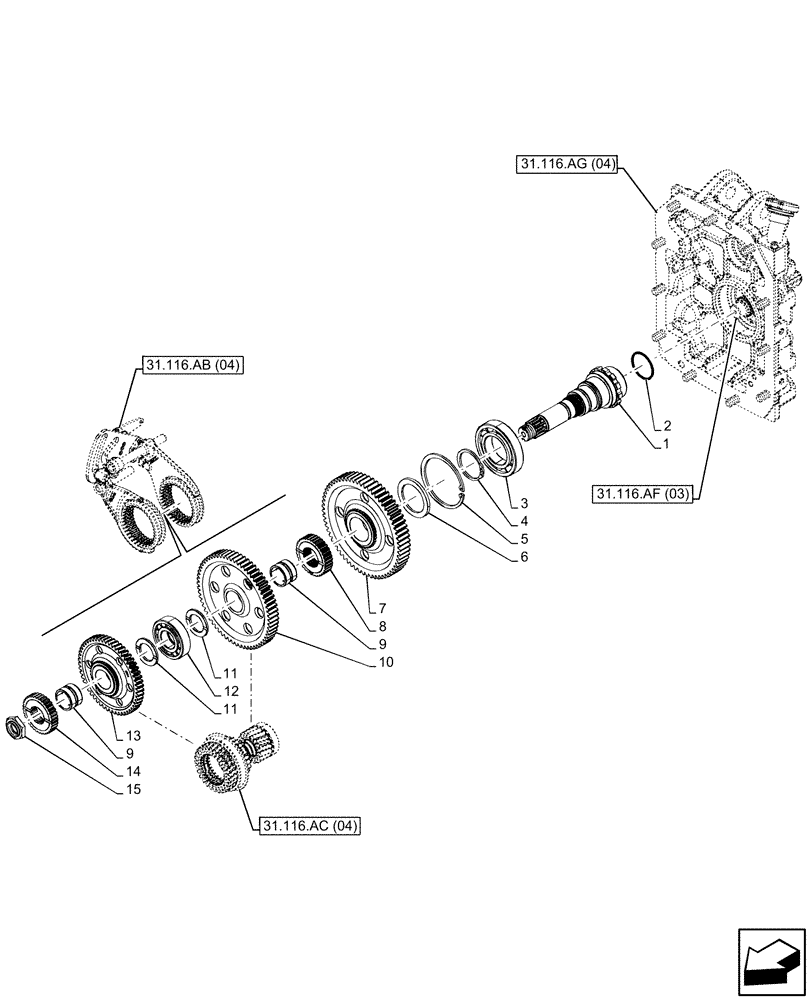

Запчасти Case IH MAXXUM 150 (31.116.AB[03]) - VAR - 758437 - PTO, DRIVE SHAFT (540E/1000/1000E RPM) (31) - IMPLEMENT POWER TAKE OFF

1

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

1шт.

2

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

3

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

4

5143130

SNAP RING,M60, Ext x 4mm

1шт.

5

11075976

SNAP RING,M120, Int

1шт.

6

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

7

84289050

GEAR,Z56

1шт.

8

87578128

GEAR,21T Internal / 33T External

1шт.

9

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

2шт.

10

84382936

GEAR,Z53

1шт.

11

5192170

ANTI-WRAP PLATE

2шт.

12

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

13

84496106

GEAR

1шт.

14

87578127

SLEEVE,Z12

1шт.

15

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.
