(27.100.AI[03]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - REAR AXLE, HOUSING, BREATHER

Запчасти Case IH MAXXUM 150 (27.100.AI[03]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - REAR AXLE, HOUSING, BREATHER (27) - REAR AXLE SYSTEM

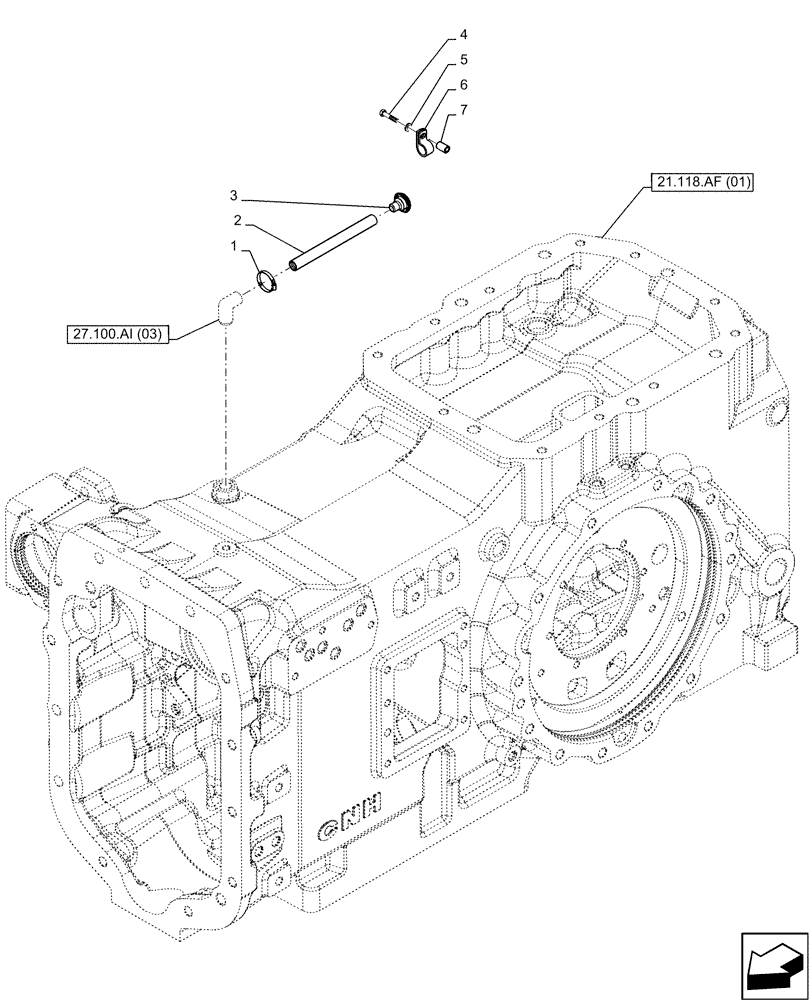

Схема запчастей Case IH MAXXUM 150 - (27.100.AI[03]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - REAR AXLE, HOUSING, BREATHER (27) - REAR AXLE SYSTEM
21.118.af (01)
4
2
6
1
3
7
5
27.100.ai (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82000599

CLAMP,22mm - 26mm

1шт.

2

82012599

FUEL HOSE,15.9mm ID x 800mm L

1шт.

3

83925022

BREATHER,.375-18 NPT

1шт.

4

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

5

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

6

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

7

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

Выбрано товаров: 7
