Запчасти Case IH MAXXUM 150 (25.102.AC[13]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM

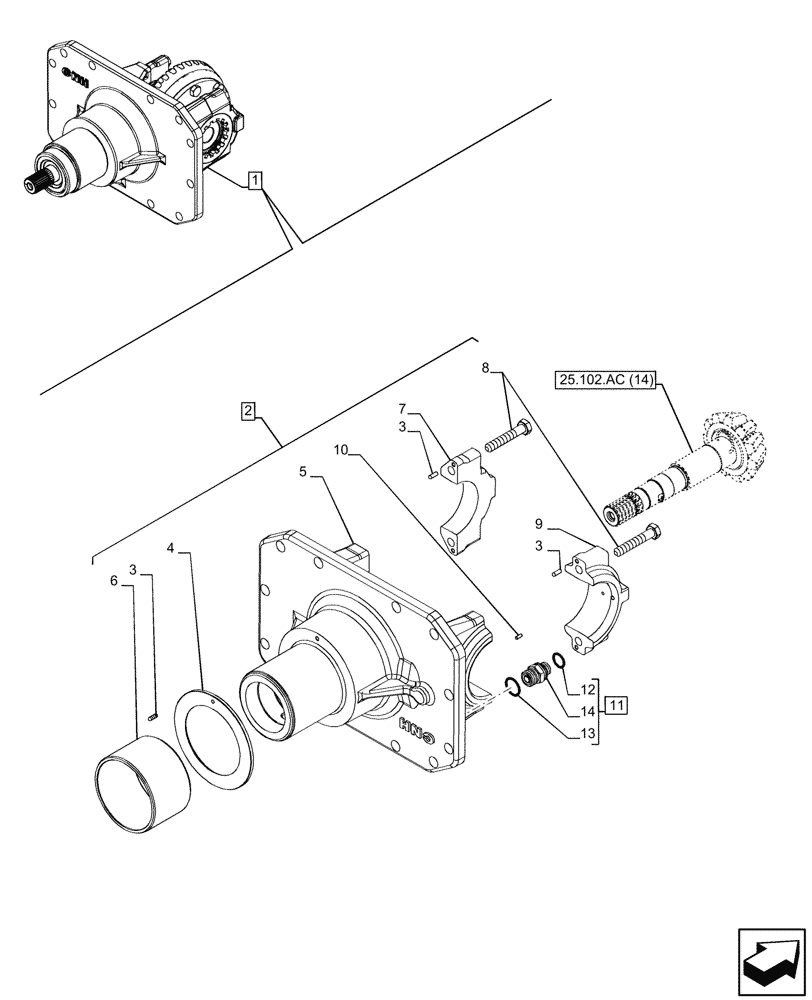

Схема запчастей Case IH MAXXUM 150 - (25.102.AC[13]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM
25.102.ac (14)
13
3
3
12
9
11
14
2
10
5
7
1
8
3
4
6

Артикул

Название

Примечание

Количество

1

84294283

DIFFERENTIAL ASSY

ASSY, Incl 2 - 14

1шт.

See also Differential Components in Figure 25.102.AC (14), 25.102.AE (02)

1шт.

2

87329356

SUPPORT

ASSY, Incl 3 - 10

1шт.

3

4966244

PIN,5mm OD x 15mm L

2шт.

4

5136115

RING,105.3mm ID x 148mm OD x 5mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

6

5136116

BUSHING,105mm ID x 115.56mm OD x 72mm L

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

8

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

9

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

10

10333210

DOWEL,M4 x 10.00mm

1шт.

11

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 12 - 14

1шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

Выбрано товаров: 15
