(55.048.AK[09]) - VAR - 759375, 759377 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (30KPH) (16X16)

Запчасти Case IH MAXXUM 145 (55.048.AK[09]) - VAR - 759375, 759377 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (30KPH) (16X16) (55) - ELECTRICAL SYSTEMS

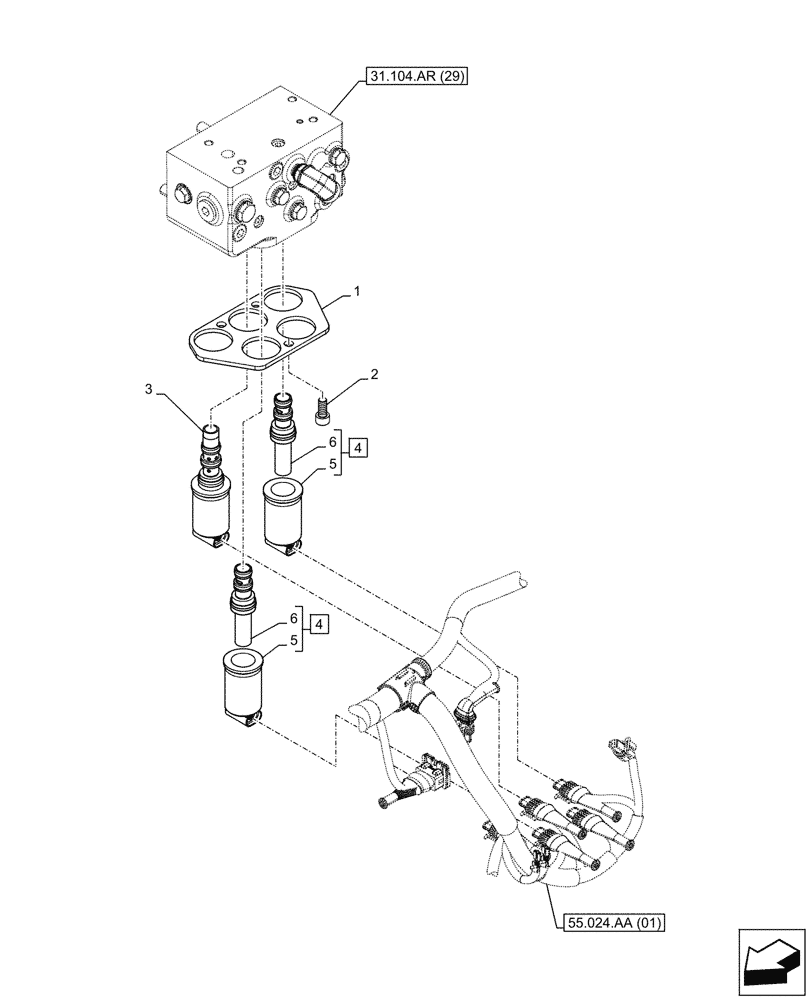

Схема запчастей Case IH MAXXUM 145 - (55.048.AK[09]) - VAR - 759375, 759377 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (30KPH) (16X16) (55) - ELECTRICAL SYSTEMS
55.024.aa (01)
6
1
5
4
3
4
5
2
6
31.104.ar (29)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5195317

PLATE

1шт.

2

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

3

87739558

SOLENOID VALVE,14W

1шт.

3

87739558R

REMAN-SOLENOID

1шт.

3

87739558C

CORE-SOLENOID

Return Number

1шт.

4

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 4

2шт.

6

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

2шт.
