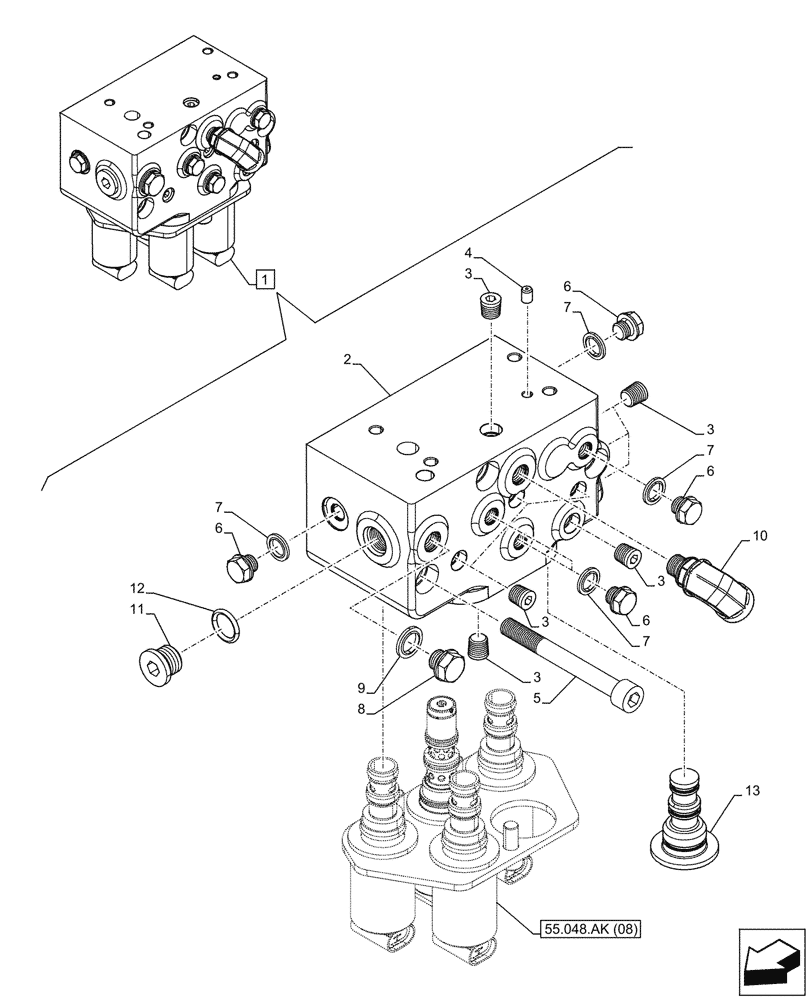

Запчасти Case IH MAXXUM 145 (31.104.AR[25]) - VAR - 759379 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE (30KPH, 16X16, W/AUTOSHIFT, W/CREEPER) (31) - IMPLEMENT POWER TAKE OFF

1

NS

NOT SERVICED

ASSY, Directional Control Valve, Incl 2 - 13

1шт.

Serviced Through Components

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

Order Hydraulic Valve Assembly PN 48043588

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

9шт.

4

5171508

RESTRICTOR

1шт.

5

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

6

87535222

PLUG,Hex, M10 x 1 x 13mm

5шт.

7

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

5шт.

8

47488502

PLUG,Hex, M12 x 1.5

1шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

10

87537887

90 ELBOW

1шт.

11

10119340

PLUG,M16 x 1.5 x 15, Brass

1шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

13

5195316

PLUG

1шт.
