Запчасти Case IH MAXXUM 145 (25.400.AM) - VAR - 759381 - 2WD FRONT AXLE, BODY (25) - FRONT AXLE SYSTEM

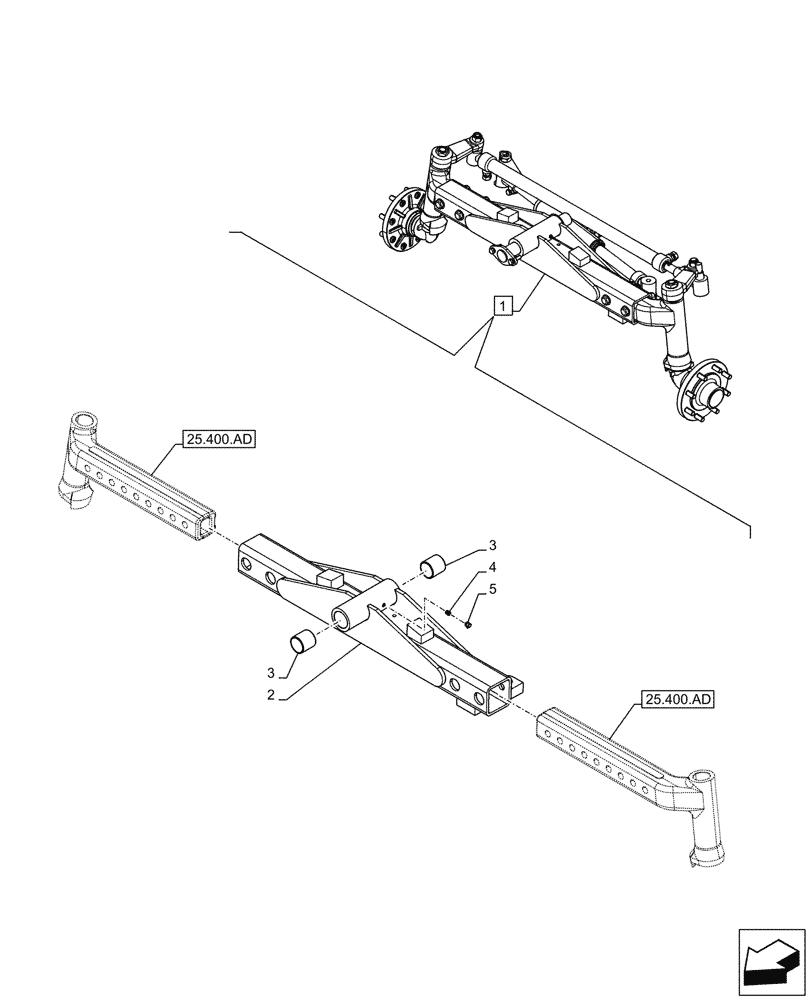

Схема запчастей Case IH MAXXUM 145 - (25.400.AM) - VAR - 759381 - 2WD FRONT AXLE, BODY (25) - FRONT AXLE SYSTEM
25.400.ad
3
4
3
1
2
5
25.400.ad

Артикул

Название

Примечание

Количество

1

48058524

FRONT AXLE

ASSY, Incl 2, 4

1шт.

See also 2WD Front Axle Components in Figure 25.400.AD, 25.400.AH, 25.400.AL, 25.400.AU, 41.106.AB, 41.106.AC (01), 41.216.AB (01)

1шт.

2

73337119

AXLE

1шт.

3

82003066

BUSHING,47.65mm ID x 54.06mm OD x 52.58mm L

2шт.

4

080710

LUBE NIPPLE

1шт.

5

47983406

PLUG,Greasing point protection,

1шт.

Выбрано товаров: 6
