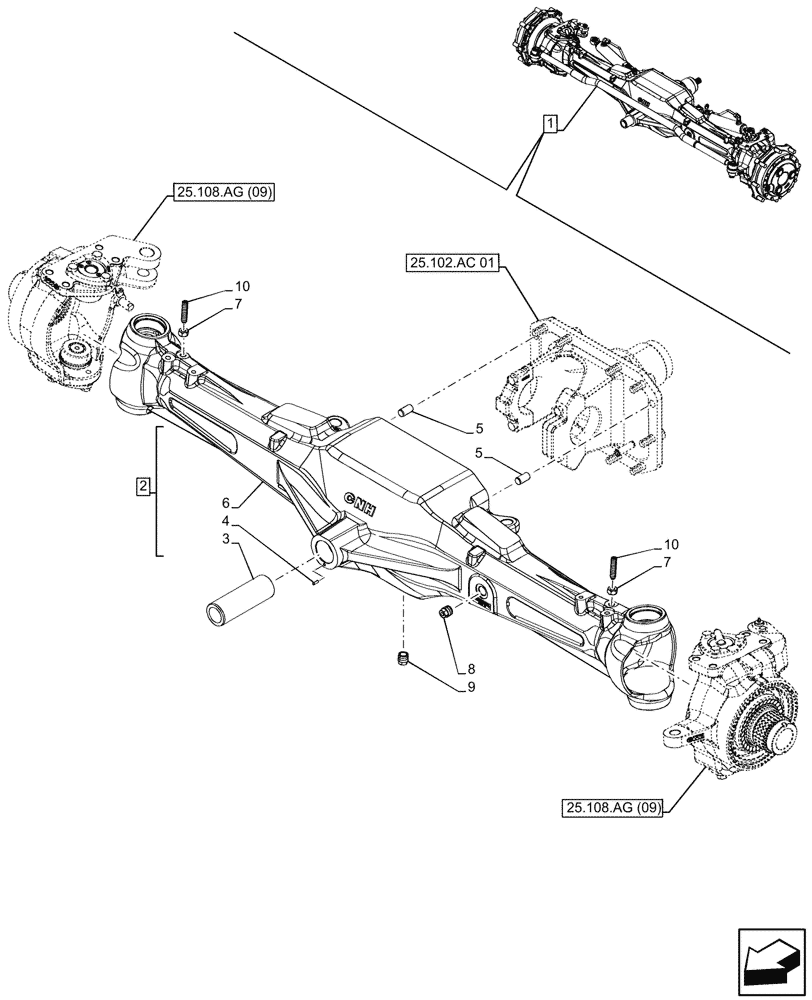

Запчасти Case IH MAXXUM 145 (25.100.AD[09]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, HOUSING (25) - FRONT AXLE SYSTEM

1

84180939

LIVE FRONT AXLE

ASSY, Incl 2 - 10

1шт.

See also Axle Components in Figure 25.100.AA (09), 25.108.AA (09), 25.108.AB (12), 25.108.AG (09), 41.216.AN (12)

1шт.

2

87585991

AXLE HOUSING

ASSY, Incl 3 - 6

1шт.

3

5140017

PIN,52.65mm OD x 153.00mm

1шт.

4

4966244

PIN,5mm OD x 15mm L

1шт.

5

5174376

DOWEL,M16 x 30

2шт.

6

87585993

AXLE HOUSING

1шт.

7

16101511

NUT,M12 x 1.25, Cl 8

2шт.

8

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

9

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

10

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.
