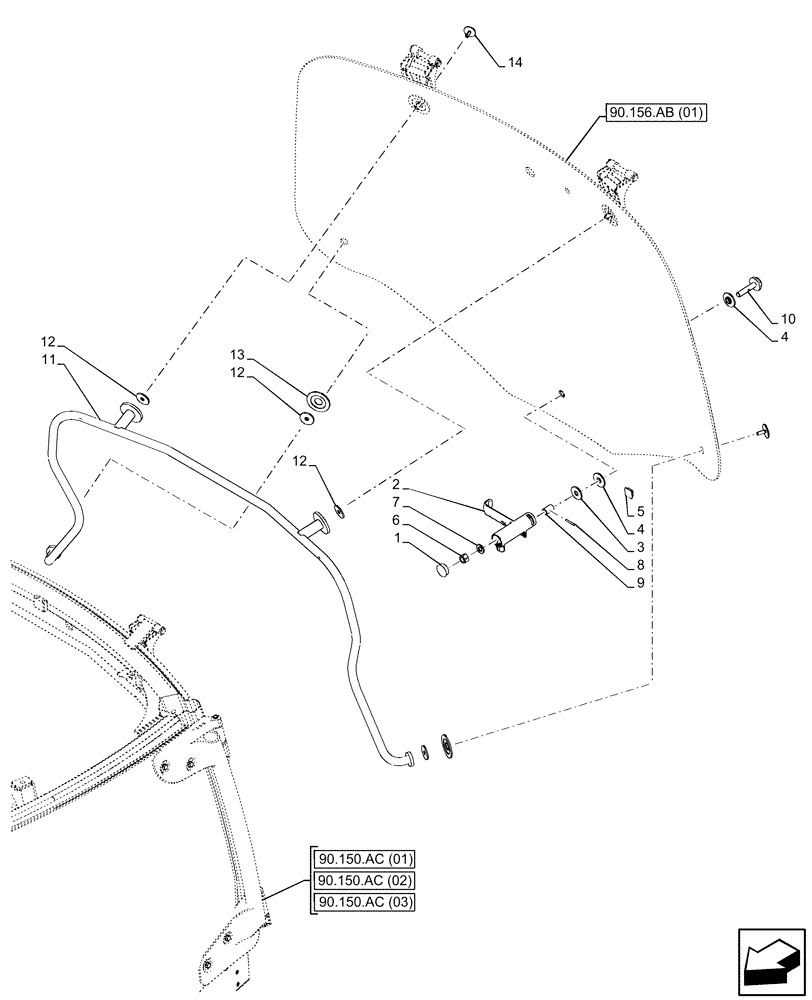

Запчасти Case IH MAXXUM 145 (90.156.AA[01]) - VAR - 391610, 758479, 758480, 758481 - CAB, WINDOW, REAR, LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

83961986

PLUG,30mm

1шт.

2

87541759

HANDLE

1шт.

3

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

1шт.

4

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

2шт.

5

84390533

RUBBER BLOCK,19.8mm L x 19.8mm W x 6.4mm Thk

1шт.

6

81853287

NUT,M12 x 1.75, Cl 8

1шт.

7

81865231

WASHER,13mm ID x 24mm OD x 3mm Thk

1шт.

8

47435892

GROOVED PIN,4mm OD x 30mm L

1шт.

9

83995351

SPACER,12mm ID x 16mm OD x 24.1mm L

1шт.

10

47464541

BOLT,M12 x 1.75 x 57mm

2шт.

11

82030829

HANDLE

1шт.

12

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

4шт.

13

44995003

SEALING WASHER,20.0mm ID x 60.0mm OD x 3.0mm Thk

4шт.

14

82013304

SCREW,Pan HD, M8 x 22mm

2шт.
