(90.151.AD[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, SAFETY BELT

Запчасти Case IH MAXXUM 145 (90.151.AD[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

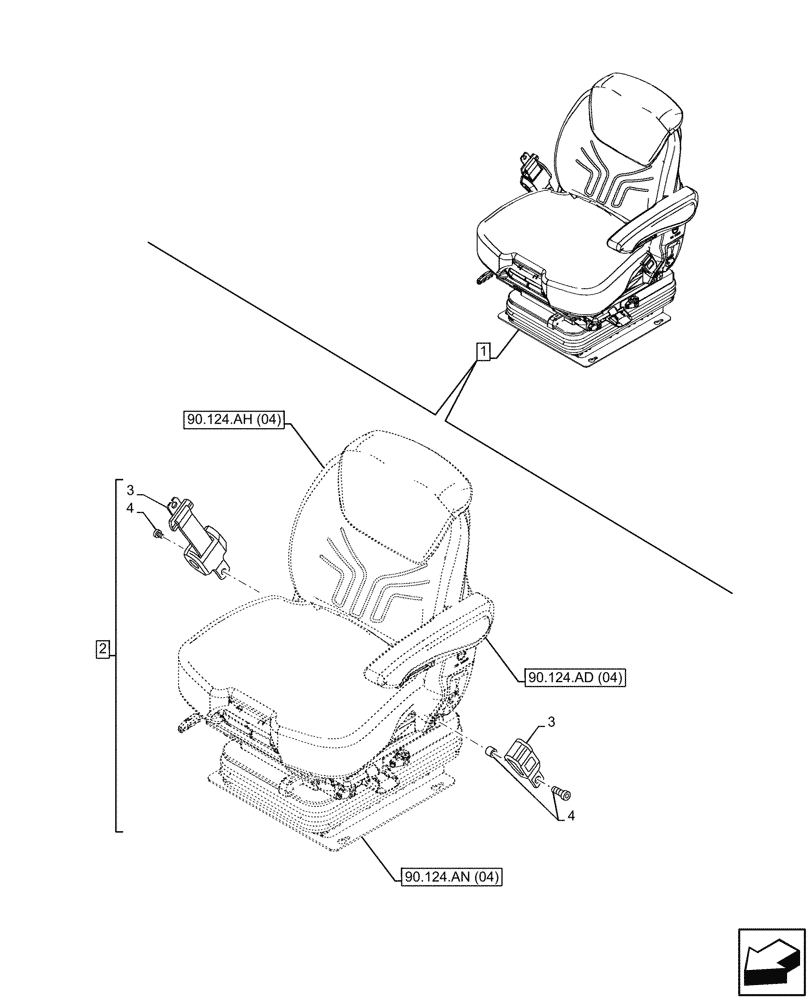

Схема запчастей Case IH MAXXUM 145 - (90.151.AD[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an (04)
1
2
3
3
4
4
90.124.ad (04)
90.124.ah (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725248

DRIVER SEAT

ASSY, Deluxe Seat with Low Frequency air suspension with heated cushions & Belt, Incl 2 - 4

1шт.

See also Driver Seat Components in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AH (04), 90.124.AK (04), 90.124.AL (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (04), 90.124.AQ (04)

1шт.

2

84191197

SEAT BELT

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Belt, Incl in 2

1шт.

4

84247566

REPAIR KIT

1шт.

Include also Small Parts in Figure 90.124.AL (04)

1шт.

Выбрано товаров: 6
