Запчасти Case IH MAXXUM 145 (90.151.AD[03]) - VAR - 758674 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

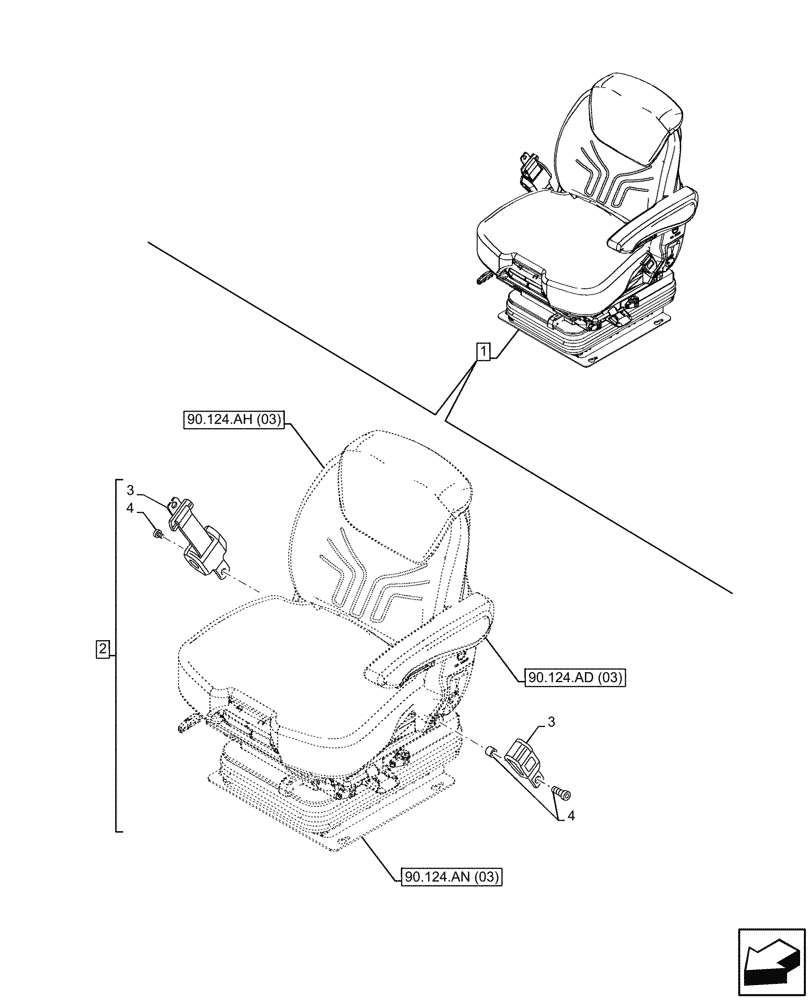

Схема запчастей Case IH MAXXUM 145 - (90.151.AD[03]) - VAR - 758674 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, W/ HEATED CUSHIONS, SAFETY BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ad (03)
2
4
4
3
1
3
90.124.an (03)
90.124.ah (03)

Артикул

Название

Примечание

Количество

1

47725243

DRIVER SEAT

ASSY, Deluxe Air suspension & Belt, Incl 2 - 4

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (05), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03)

1шт.

2

84191197

SEAT BELT

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Belt, Incl in 2

1шт.

4

84247566

REPAIR KIT

1шт.

Include also Small Parts in Figure 90.124.AL (03)

1шт.

Выбрано товаров: 6
