Запчасти Case IH MAXXUM 145 (90.124.AM[07]) - VAR - 391283 - SEAT, AIR SUSPENSION, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

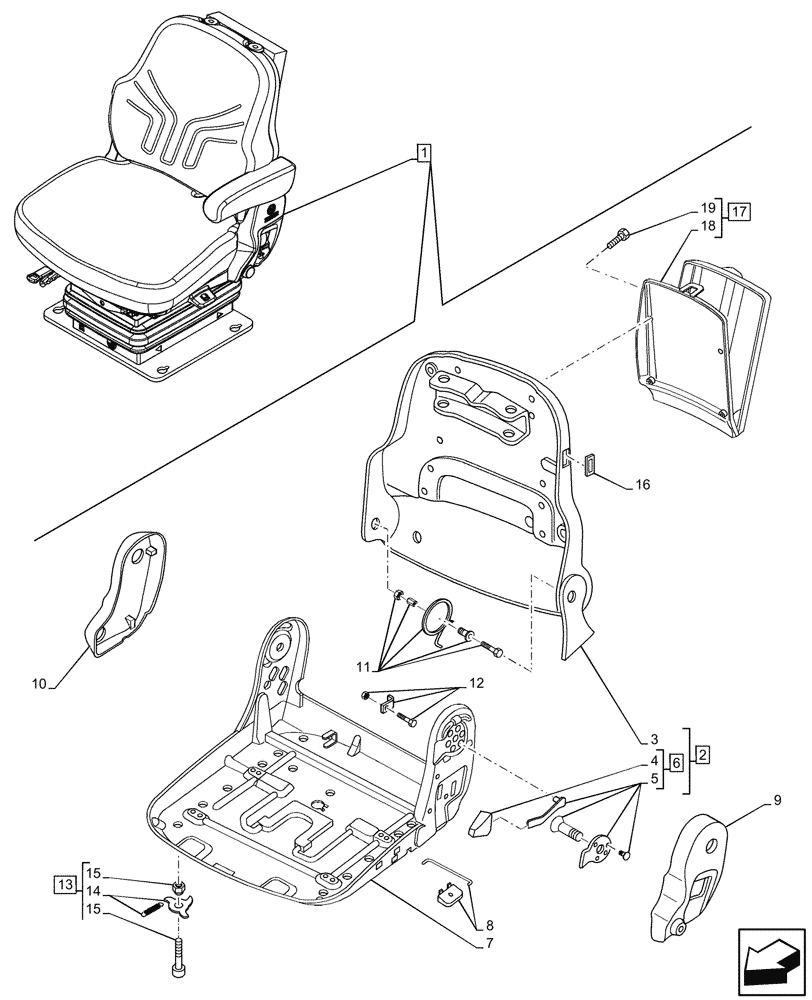

Схема запчастей Case IH MAXXUM 145 - (90.124.AM[07]) - VAR - 391283 - SEAT, AIR SUSPENSION, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
7
14
6
1
15
9
16
5
12
11
4
13
10
1
18
19
17
3
8
15

Артикул

Название

Примечание

Количество

1

47725120

DRIVER SEAT

ASSY, Fabric, Confetti Wheat, Incl 2 - 19

1шт.

See also Driver Seat Components in Figure 55.512.CQ (05), 90.124.AD (04), 90.124.AH (04), 90.124.AK (04), 90.124.AL (04), 90.124.AM (08), 90.124.AN (01), 90.151.AD (04)

1шт.

2

84255306

KIT

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

4

345752A1

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Adapter, Incl in 6

1шт.

6

84255307

ADAPTER

ASSY, Incl 4, 5

1шт.

7

82034966

PAN

1шт.

8

82034959

HANDLE

1шт.

9

71491405

COVER

1шт.

10

82023115

COVER

1шт.

11

84247562

SET OF PARTS

1шт.

12

84336460

ASSEMBLY

1шт.

13

345775A1

LEVER

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Lever, Incl in 13

1шт.

15

84191203

CONTROL LEVER

1шт.

16

47540083

PLUG

1шт.

17

71491415

UTILITY HOLDER

ASSY, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Holder, Incl in 17

1шт.

19

84247569

REPAIR KIT

1шт.

Выбрано товаров: 20
