Запчасти Case IH MAXXUM 145 (90.124.AM[03]) - VAR - 758674 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

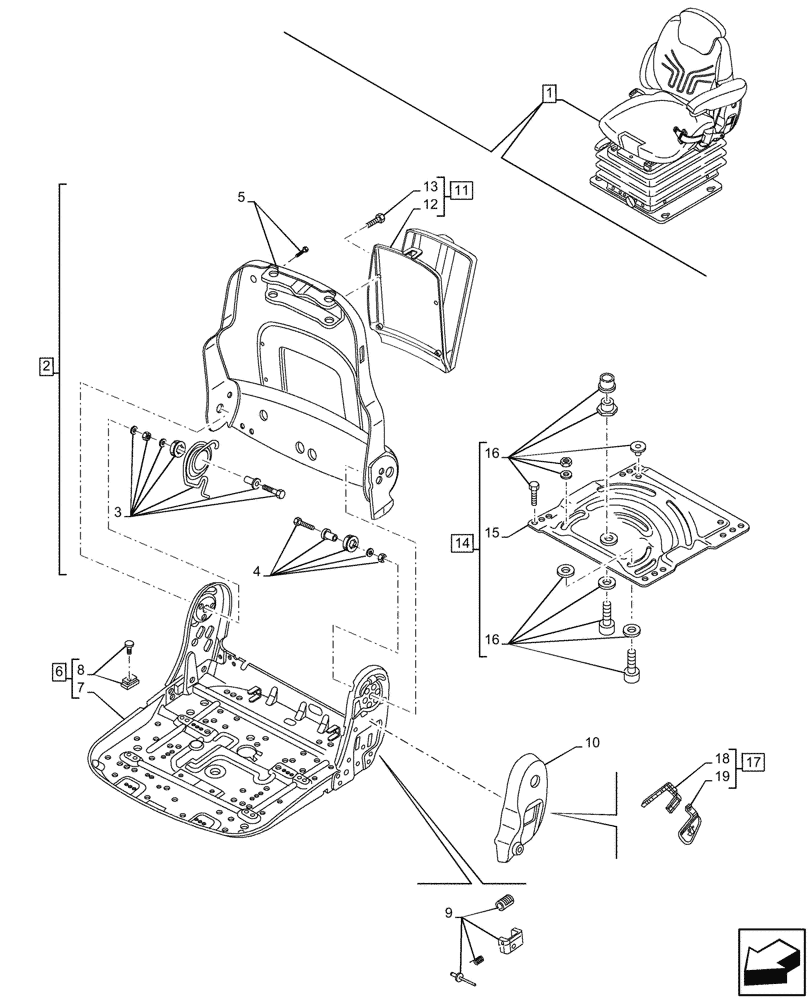

Схема запчастей Case IH MAXXUM 145 - (90.124.AM[03]) - VAR - 758674 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, CUSHION, BACKREST, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
3
7
10
5
14
4
8
13
11
18
15
9
19
17
2
16
6
1
16

Артикул

Название

Примечание

Количество

1

47725243

DRIVER SEAT

ASSY, Deluxe Air suspension & Belt, Incl 2 - 19

1шт.

See also Driver Seat Components in Figure 55.512.CQ (03), 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03), 90.151.AD (03)

1шт.

2

84247560

BACKREST

ASSY, Incl 3 - 5

1шт.

3

84247562

SET OF PARTS

1шт.

4

84191196

SET OF PARTS

1шт.

5

NSS

NOT SOLD SEPARAT

Backrest, Incl in 2

1шт.

6

1-34-751-735

SEAT SUPPORT

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 6

1шт.

8

84191178

SET OF PARTS

1шт.

9

82034946

SERVICE KIT

1шт.

10

87331931

COVER

LH

1шт.

11

71491415

UTILITY HOLDER

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Literature Box, Incl in 11

1шт.

13

84247569

REPAIR KIT

1шт.

14

84247568

REPAIR KIT

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Seat Swivel, Incl in 14

1шт.

16

1-34-751-712

SET OF PARTS

1шт.

17

82034960

LEVER

1шт.

18

NSS

NOT SOLD SEPARAT

Lever, Incl in 17

1шт.

19

82034950

HANDLE

1шт.

Выбрано товаров: 20
