Запчасти Case IH MAXXUM 145 (90.124.AL[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

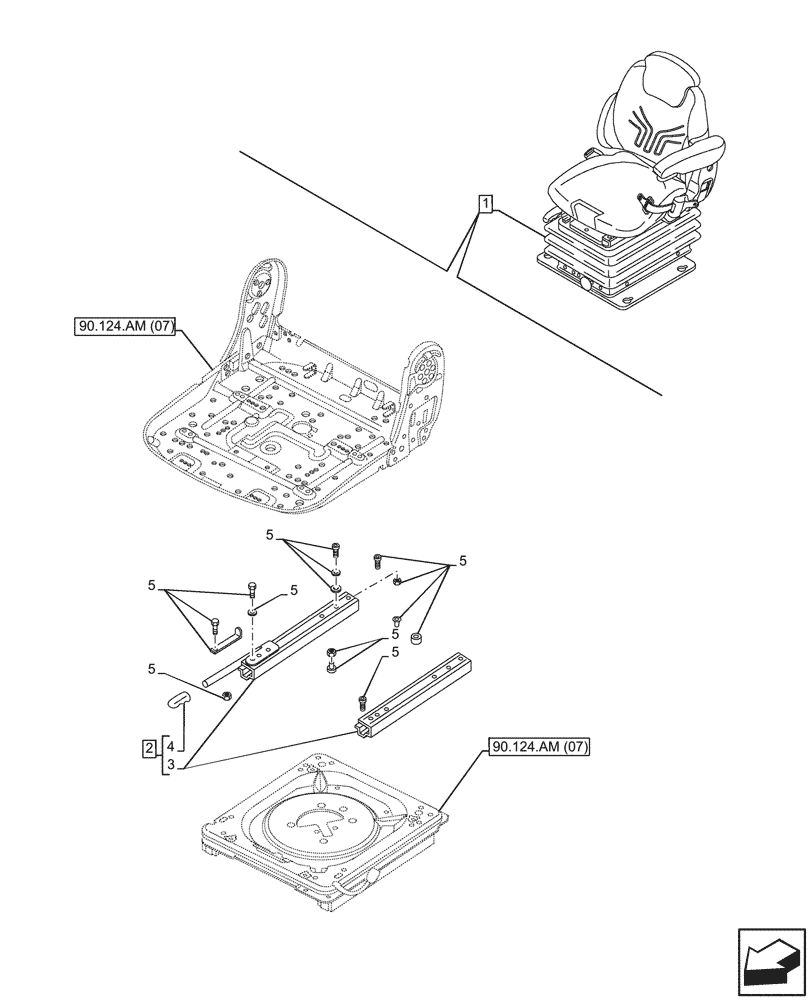

Схема запчастей Case IH MAXXUM 145 - (90.124.AL[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (07)
5
3
5
5
1
5
5
5
4
2
5
90.124.am (07)

Артикул

Название

Примечание

Количество

1

47725248

DRIVER SEAT

ASSY, Deluxe Seat with Low Frequency air suspension with heated cushions & Belt, Incl 2 - 5

1шт.

See also Driver Seat Components in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AH (04), 90.124.AK (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (04), 90.124.AQ (04), 90.151.AD (04)

1шт.

2

84247565

SLIDE GUIDE

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Slide Guide, Incl in 2

1шт.

4

9971715

HANDLE

1шт.

5

84247566

REPAIR KIT

1шт.

Include also Small Parts in Figure 90.151.AD (04)

1шт.

Выбрано товаров: 7
